Features:
- 4K (3840*2160) Ultra-HD native resolution ,
- 12G-SDI Single - Link , Dual - Link , Quad - Link (4 *3G)
- 15.6" perfect size for both suitcase & rackmount,
- High contrast: 1000:1,
- 330cd/m² brightness,
- 176° Ultra high viewing angle,
- Rich interfaces: 12G-SDI, 4K HDMI input,
- Metal housing,
- Wide voltage: DC12-24V.
Parameters:
|
DISPLAY
|
Display Screen |
15.6” 8bit |
| Physical Resolution |
3840×2160, 4K |
| Aspect Ratio |
16:9 |
| Brightness |
330cd/m² |
| Contrast |
1000:1 |
| Viewing Angle |
176°/176°(H/V) |
|
INPUT
|
12G-SDI |
2 |
| 3G-SDI |
2 |
| HDMI |
HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz) |
| HDMI wireless |
1 (optional) |
| TALLY |
1 |
|
OUTPUT
|
12G-SDI |
2 |
| 3G-SDI |
2 |
|
AUDIO
|
Speaker |
1 |
| Ear Phone Slot |
1 |
|
POWER
|
Current |
2.8A (15V) |
| Input Voltage |
DC 12-24V (XLR) |
| Battery Plate |
V-mount / Anton Bauer mount |
| Power Consumption |
≤34W |
|
ENVIRONMENT
|
Operating Temperature |
0℃～60℃ |
| Storage Temperature |
-20℃～60℃ |
|
DIMENSION
|
Dimension(LWD) |
389×267×38mm / 524×305×170mm (with case)
|
| Weight |
3.4kg / 12kg (with case) |
|
|
|
|

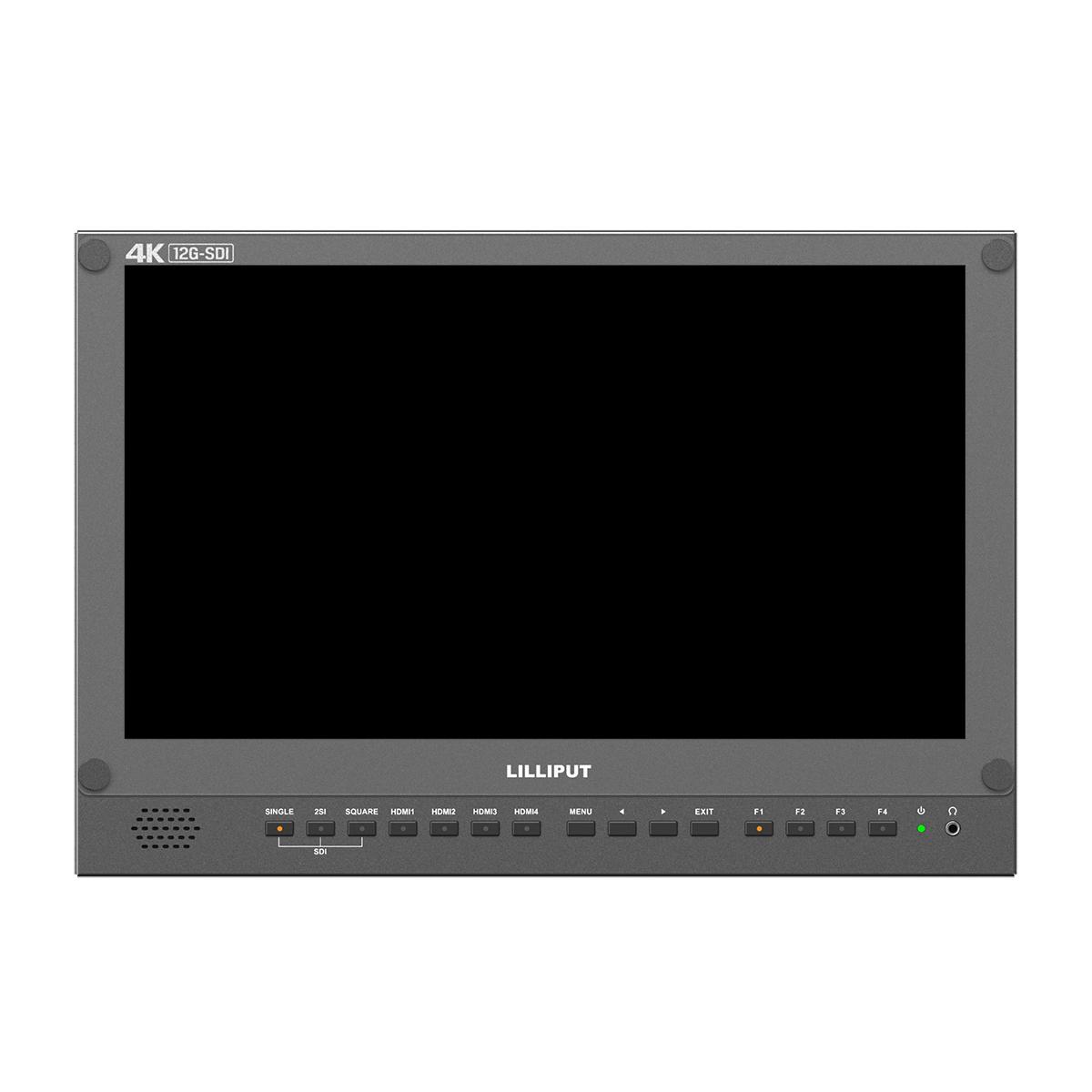

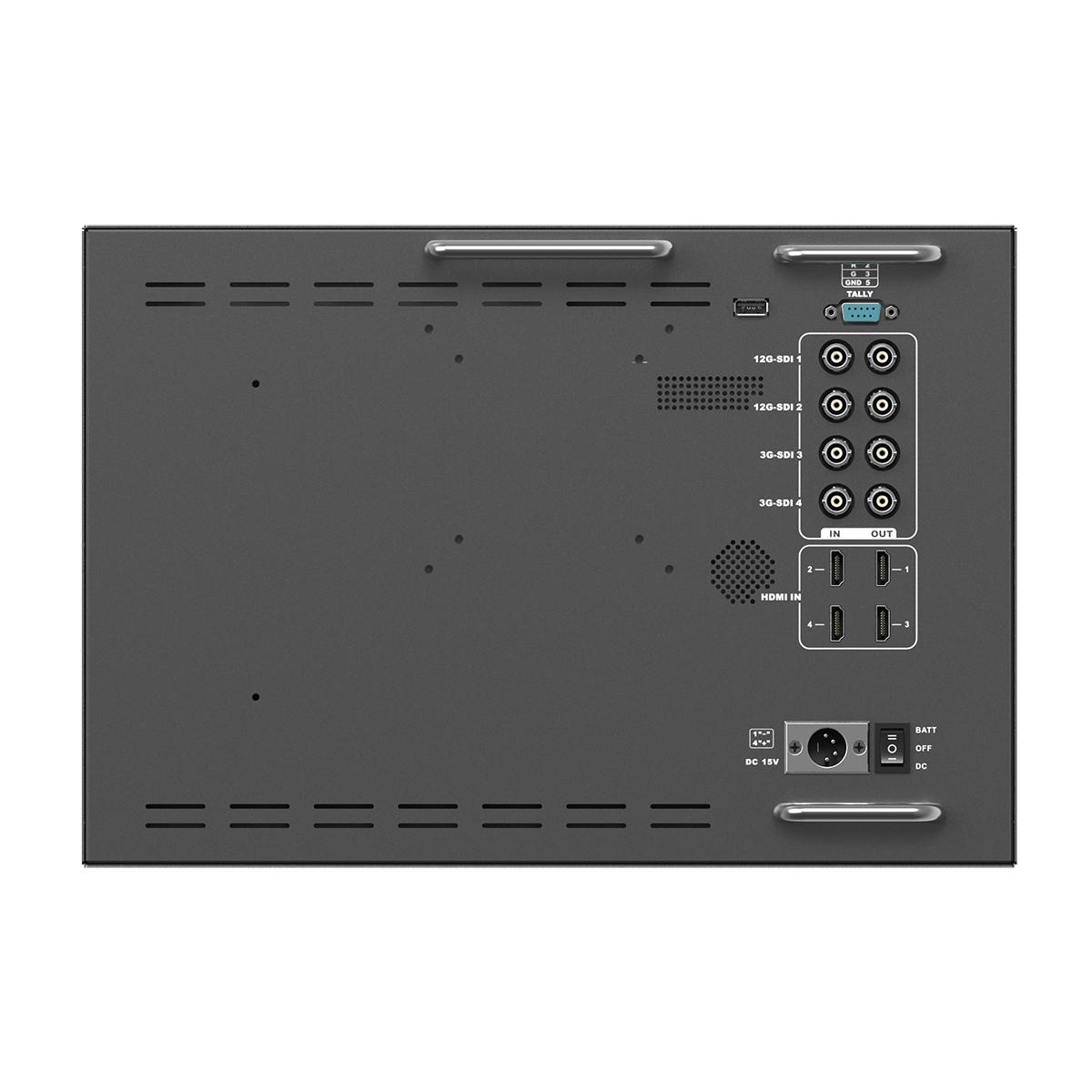

Product Image
|
|
