LILLIPUT 5.4 inch HDMI2.0/3G-SDI On-Camera monitor FS5

LILLIPUT 5inch HDMI2.0 Camera Monitor
  • LILLIPUT 5inch HDMI2.0 Camera Monitor
  • LILLIPUT camera Monitor
  • LILLIPUT Field monitor
  • LILLIPUT Camera top monitor
Model No.︰FS5
Brand Name︰LILLIPUT
Country of Origin︰China
Share on:

 Total 50 Related Items
Prev12345Next

Product Description

Short Description:

The professional on-camera monitor matches with FHD/4K camcorder and DSLR camera. The 5.4 inch 1920×1200 Full HD native resolution screen features with fine picture quality and good color reproduction. The SDI ports support 3G-SDI signal input and loop output, HDMI ports support up to 4K signal input and loop output. . Aluminum housing design, which effectively improves monitor durability. It also come with excellent dispaly which 88% DCI-P3 color space, which offers outstanding viewing experience.

Features:

- 5.4'' ,1920*1200
- HDMI2.0 input & loop output
- 3G-SDI input & loop output
- HDR (High Dynamic Range) supporting HLG, ST 2084 300/1000/10000
- 3D-Lut option of color production includes 8 default camera log and 6 user camera log
- Gamma adjustments (1.8, 2.0, 2.2, 2.35, 2.4, 2.6)
- Assistant (Waveform, Vector scope, Time code, Peaking, False Color, Exposure, Histogram, marker, scan, check field,       level meter, image flip etc.)
- F1 User-definable function button
- With silicon rubber case

Specification:



DISPLAY Panel 5.4” LTPS
Physical Resolution 1920×1200
Aspect Ratio 16:10
Brightness 600cd/m2
Contrast 1100:1
Viewing Angle 160°/ 160° (H/V)
HDR ST 2084 300/1000/10000 / HLG
Supported Log Formats Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User…
LUT Support 3D-LUT (.cube format)
INPUT 3G-SDI 1
HDMI 1 (HDMI 2.0, supports up to 4K 60Hz)
OUTPUT 3G-SDI 1
HDMI 1 (HDMI 2.0, supports up to 4K 60Hz)
FORMATS SDI 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50…
HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
11
AUDIO Speaker 1
Ear Phone Slot 1
POWER Current 0.75A (12V)
Input Voltage DC 7-24V
Battery Plate NP-F / LP-E6
Power Consumption ≤9W
ENVIRONMENT Operating Temperature -20℃~50℃
Storage Temperature -30℃~70℃
DIMENSION Dimension(LWD) 154.5×90×20mm
Weight 295g

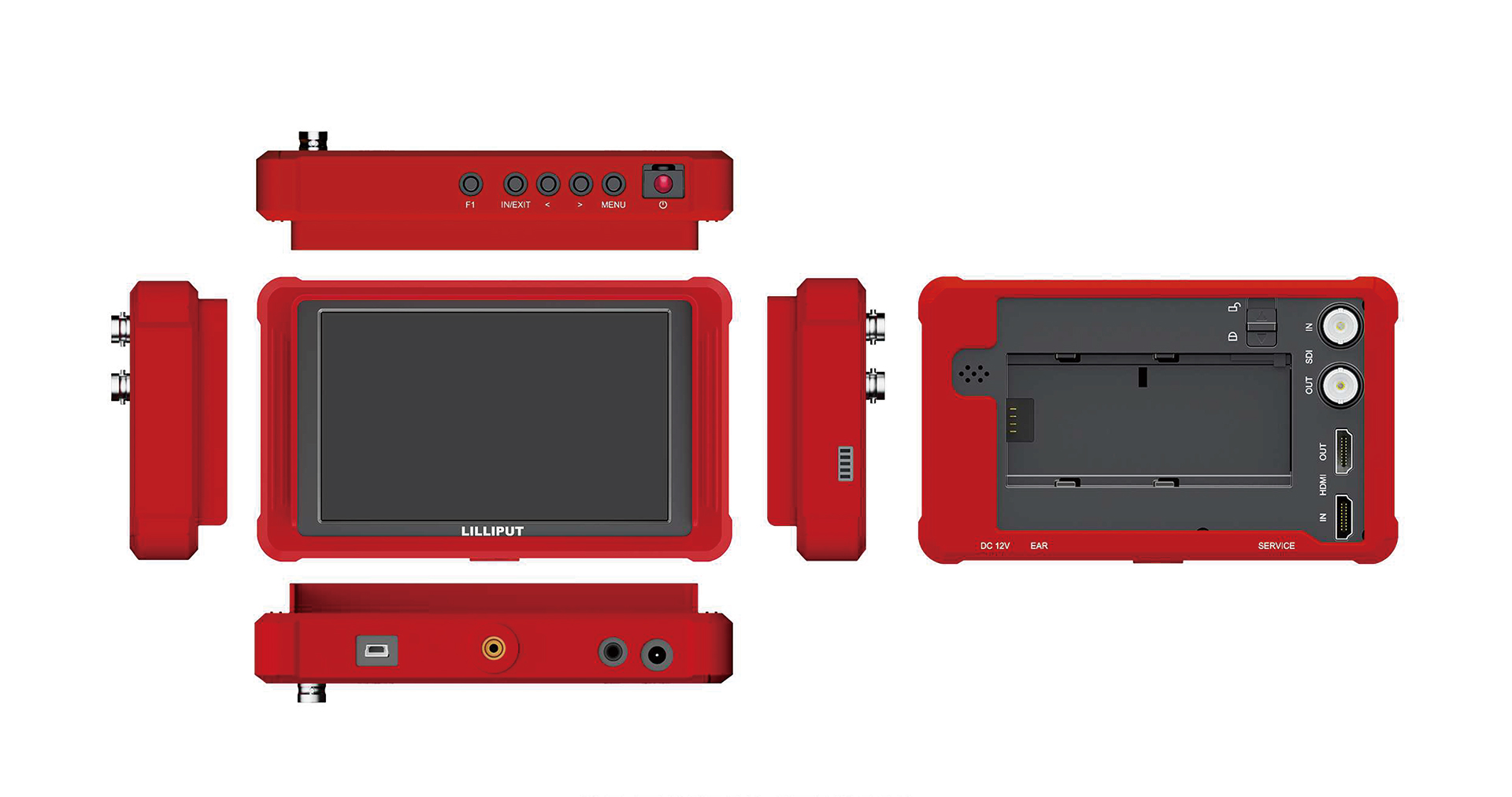

Product Image

LILLIPUT 5inch HDMI2.0 Camera Monitor
LILLIPUT 5inch HDMI2.0 Camera Monitor

LILLIPUT camera Monitor
LILLIPUT camera Monitor

LILLIPUT Field monitor
LILLIPUT Field monitor

LILLIPUT Camera top monitor
LILLIPUT Camera top monitor
