LILLIPUT 7inch 2000nits 12G-SDI Ultra Brightness On-Camera Monitor

LILLIPUT 12G-SDI monitor
  • LILLIPUT 12G-SDI monitor
  • LILLIPUT 7   12G-SDI monitor
  • LILLIPUT camera monitor
  • LILLIPUT field monitor
  • LILLIPUT ultra brightness camera monitor
  • LILLIPUT HDMI2.0 monitor
  • LILLIPUT 7inch 12G-SDI monitor
  • LILLIPUT 12G-SDI field monitor
  • LILLIPUT MONITOR
  • LILLIPUT
  • LILLIPUT Camera Monitor
Model No.︰Q7-12G
Brand Name︰LILLIPUT
Country of Origin︰China
Share on:

 Total 50 Related Items
Prev12345Next

Product Description

Description:

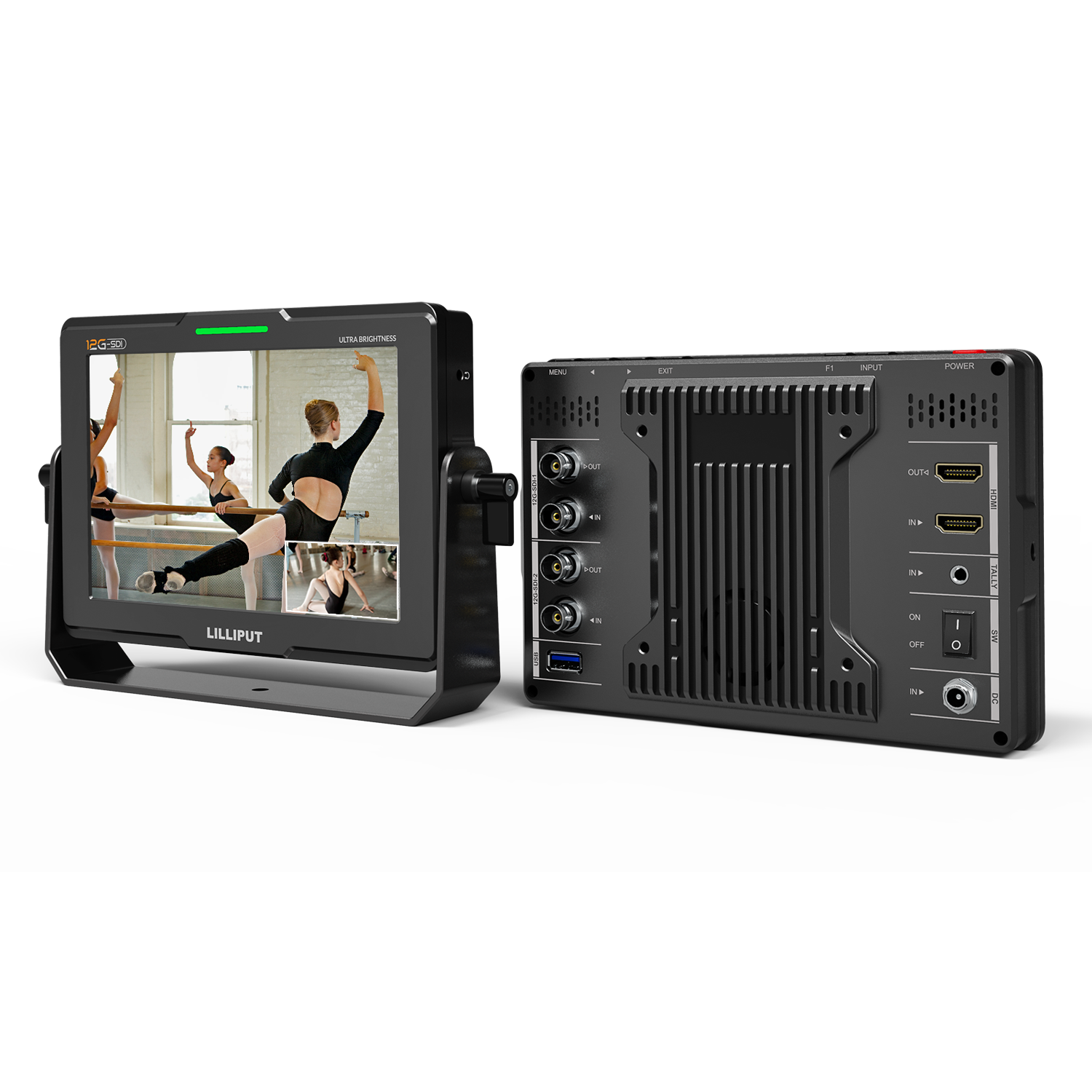

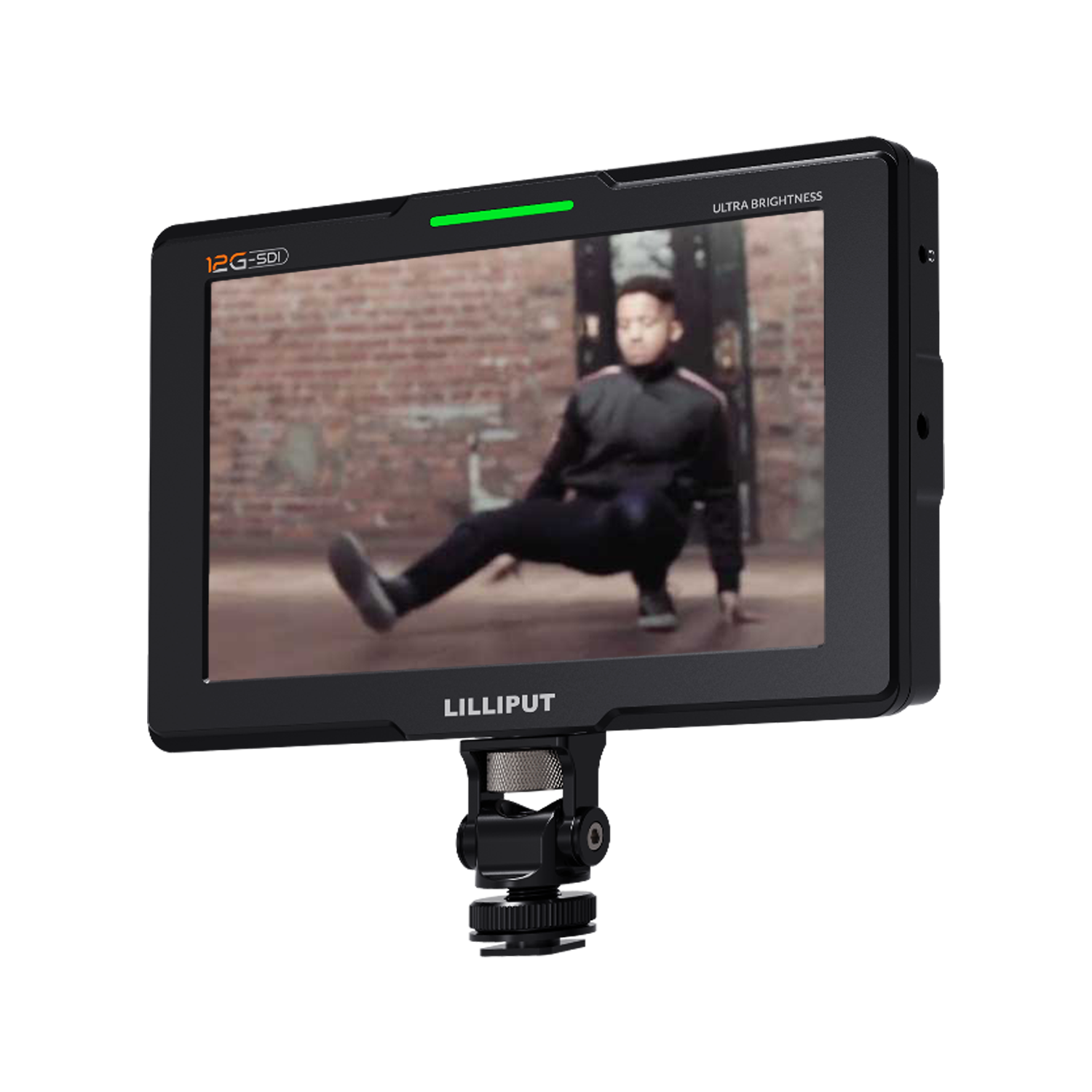

Q7-12G is a professional camera-top monitor came with an amazing 2000 nits Ultra Bright LCD screen, specifically for photography and film maker, especially for outdoor video and film shooting.This 7 inch LCD monitor has 1920×1200 Full HD native resolution and 1200:1 high contast providing superior picture quality, and support 4K HDMI and 12G-SDI signal inputs and loop outputs. It is possible to receive 2× 12G-SDI signals and diaplay at the same time through the picture-in-picture function, the size and position of which can be adjusted.And HDMI signals up to 4K 60Hz which is compatible with the latest DSLR cameras on the market with an HDMI 2.0 interface.

Features:

 Aluminum housing
 7'', 1920*1200, 2000 cd/m2 high Brightness
 HDMI 2.0 input & loop output; 12G-SDI input & loop output; Tally in
 HDR (High Dynamic Range) supporting ST2084 300/ST 2084 1000/ST 2084 10000/HLG
 3D-Lut option of color production includes 17 default camera log and 6 user camera log
 Gamma adjustments (1.8, 2.0, 2.2, 2.35, 2.4, 2.6, 2.8)
 Color Temperature (5500K, 6500K, 7500K, 9300K, User)
 Markers & Aspect Mat (Center Marker, Aspect Marker, Safety marker)
 Scan (Aspect, Pixel To Pixel, Zoom)
 Check Field (Red, Green, Blue, Mono)
 Assistant (Peaking, False Color, Exposure, Histogram)
 Image Flip (H, V, H/V)
 Picture in Picture
 F1 User-definable function buttons



Specification:

DISPLAY      Panel 7”
Physical Resolution 1920×1200
Aspect Ratio 16:10
Brightness 2000 nit
Contrast 1200:1
Viewing Angle 170°/ 170°(H/V)
HDR ST2084 300/1000/10000/HLG
Supported Log formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up table (LUT) support 3D LUT (.cube format)

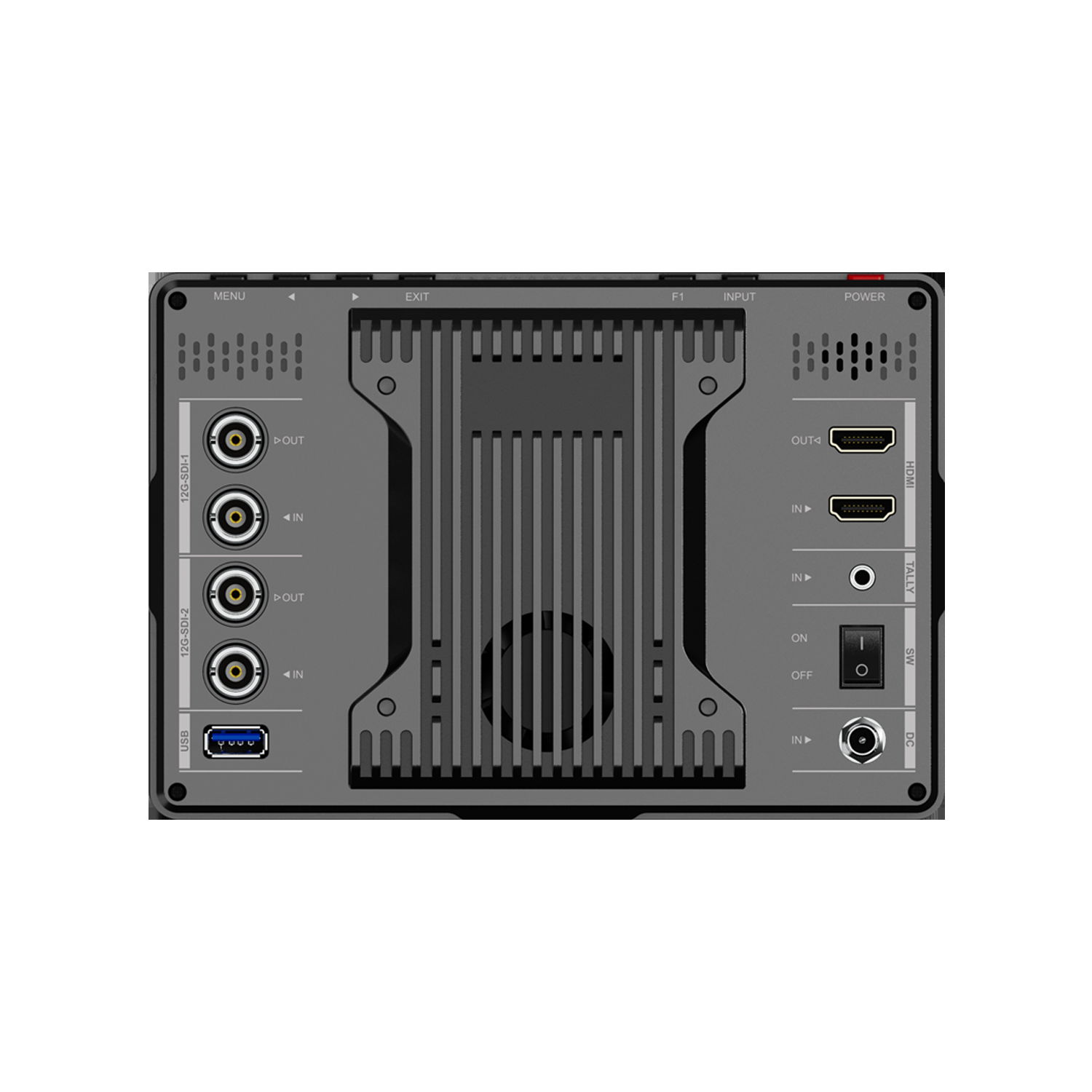

SIGNAL INPUT SDI 2×12G-SDI
HDMI 1×HDMI 2.0
Tally 1
SIGNAL LOOP OUTPUT SDI 2×12G-SDI
HDMI 1×HDMI 2.0
SUPPORT FORMATS SDI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,
1080i 60/50, 720p 60/50…
HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50,
720p 60/50…
AUDIO IN/OUT SDI 16ch 48kHz 24-bit
HDMI 8ch 24-bit
Ear Jack 3.5mm
Built-in Speakers 1
POWER Input Voltage DC 7-24V
Power Consumption ≤20W (12V)
ENVIRONMENT Operating Temperature 0°C~50°C
Storage Temperature -20°C~60°C
OTHER Dimension(LWD) 186mm × 128mm × 32.5mm
Weight 785g
Product Image

LILLIPUT 12G-SDI monitor
LILLIPUT 12G-SDI monitor

LILLIPUT 7'' 12G-SDI monitor
LILLIPUT 7'' 12G-SDI monitor

LILLIPUT camera monitor
LILLIPUT camera monitor

LILLIPUT field monitor
LILLIPUT field monitor

LILLIPUT ultra brightness camera monitor
LILLIPUT ultra brightness camera monitor

LILLIPUT HDMI2.0 monitor
LILLIPUT HDMI2.0 monitor

LILLIPUT 7inch 12G-SDI monitor
LILLIPUT 7inch 12G-SDI monitor

LILLIPUT 12G-SDI field monitor
LILLIPUT 12G-SDI field monitor

LILLIPUT MONITOR
LILLIPUT MONITOR

LILLIPUT
LILLIPUT

LILLIPUT Camera Monitor
LILLIPUT Camera Monitor
