Features:
- 12.5" 8bit IPS panel,
- 3840x2160, ultra HD resolution,
- 400cd/m² high brightness,
- 170°viewing angle,
- 1500:1 high contrast,
- 3G-SDI, 4K HDMI, Displayport,
- Quad view, false color, peaking, image flip,
- Light and slim 21.8mm.
Parameters:
|
DISPLAY
|
Display Screen |
12.5" 8bit IPS |
| Physical Resolution |
3840×2160 |
| Aspect Ratio |
16:9 |
| Brightness |
400cd/m2 |
| Contrast |
1500:1 |
| Viewing Angle |
170°/170°(H/V) |
|
INPUT
|
3G-SDI |
1 |
| HDMI |
HDMI 2.0×1 (support 4K 60Hz)
HDMI 1.4×3 (support 4K 30Hz) |
| Display-port |
Display-port 1.2×1 (support 4K 60Hz) |
|
OUTPUT
|
3G-SDI loop |
1 |
|
AUDIO
|
Speaker |
1 |
| Ear Phone Slot |
1 |
|
POWER
|
Current |
1.3A |
| Input Voltage |
DC 7-20V |
| Battery Plate |
V-mount / Anton Bauer mount |
| Power Consumption |
≤16W |
|
ENVIRONMENT
|
Operating Temperature |
-20℃～60℃ |
| Storage Temperature |
-30℃～70℃ |
|
DIMENSION
|
Dimension(LWD) |
297.6×195×21.8mm |
| Weight |
960g |
|
|
|
|

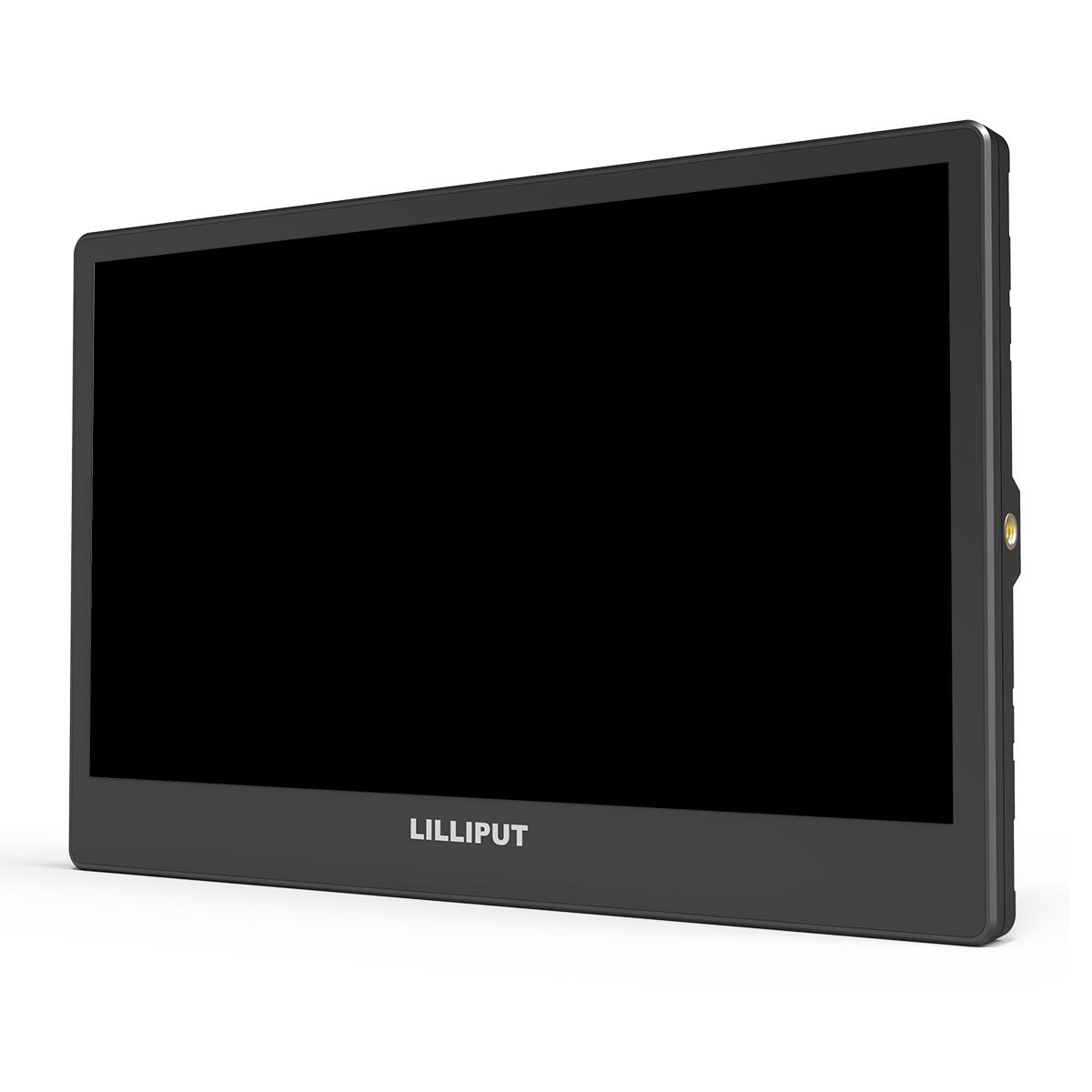

Product Image
|
|
