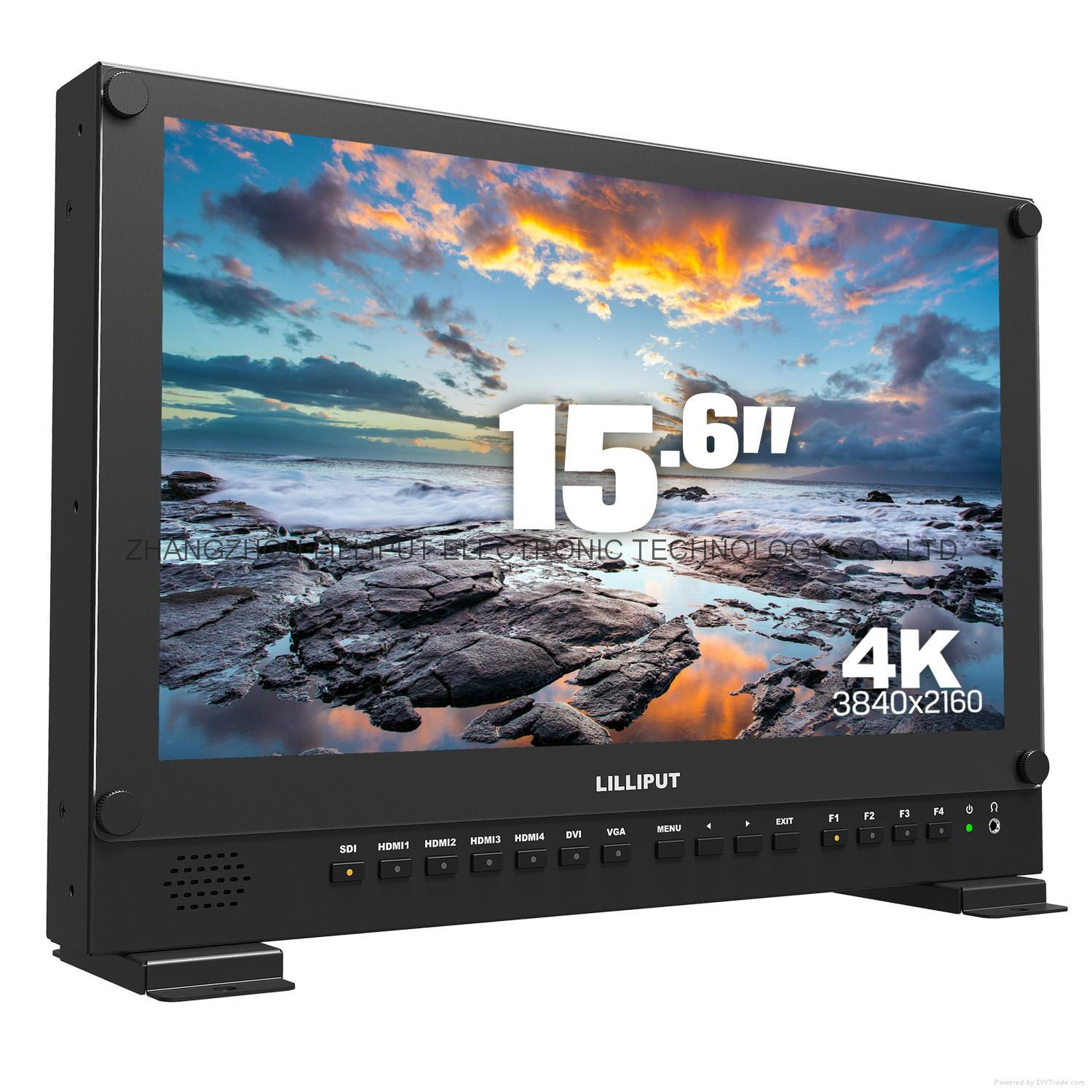

15.6'' 6G-SDI 4K monitor

4K Carry-on Monitor
  • 4K Carry-on Monitor
  • 6G-SDI monitor
  • 4K Director Monitor
  • Broadcast Monitor
Model No.︰BM150-6G
Brand Name︰LILLIPUT
Country of Origin︰China
Share on:

 Total 50 Related Items
Prev2425262728Next

Product Description

Features:

4K (3840*2160) Ultra-HD native resolution ,
6G-SDI Single - Link(2SI) ,
15.6" perfect size for both suitcase & rackmount,
High contrast: 1000:1,
330cd/m² brightness,
176° Ultra high viewing angle,
Rich interfaces: 6G-SDI, HDMI, DVI, VGA, AV input,
Metal housing,
Wide voltage: DC12-24V.

Specification:

DISPLAY

  Display Screen   15.6”  8bit
  Physical Resolution   3840×2160, 4K
  Aspect Ratio   16:9
  Brightness   330cd/m²
  Contrast   1000:1
  Viewing Angle   176°/176°(H/V)

INPUT

  6G-SDI   1
  Wireless HDMI   1 (optional)
  HDMI   HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz)
  DVI   1
  VGA   1
  Audio   2 (L/R)
  TALLY   1

OUTPUT

  6G-SDI   1

AUDIO

  Speaker   1
  Ear Phone Slot   1

POWER

  Current   1A (15V)
  Input Voltage   DC 12-24V (XLR)
  Battery Plate   V-mount / Anton Bauer mount
  Power Consumption   ≤15W

ENVIRONMENT

  Operating Temperature   0℃~60℃
  Storage Temperature   -20℃~60℃

DIMENSION

  Dimension(LWD)

  389×267×38mm / 524×305×170mm (with case)

  Weight   3.4kg / 12kg (with case)
