Features:
1920×1080, Full HD resolution,
300cd/m² high brightness,
700:1 high contrast,

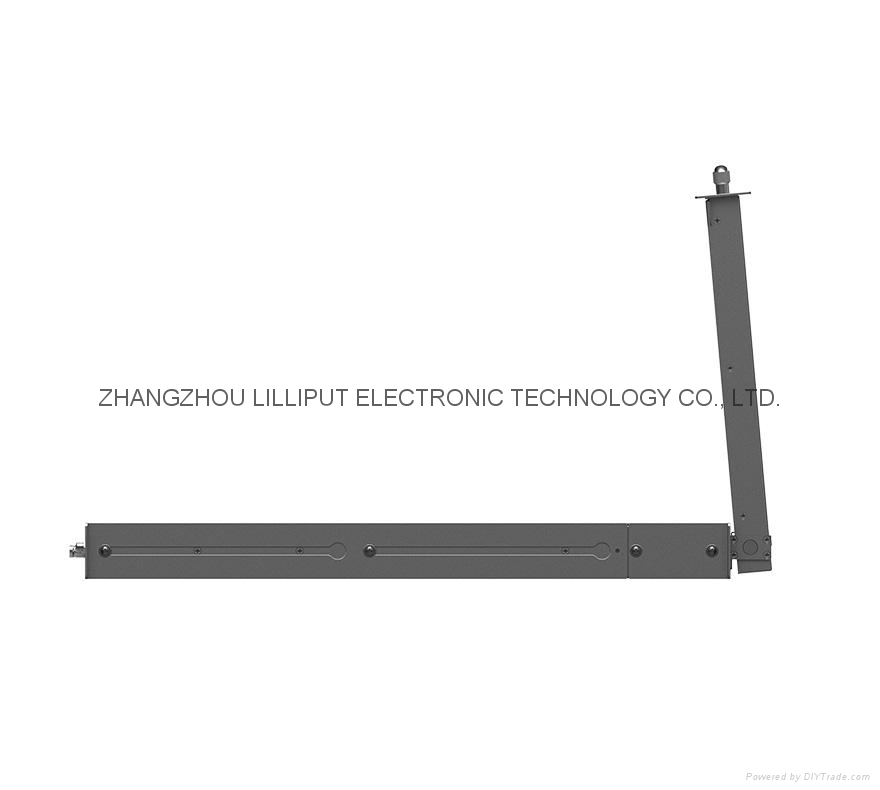

1RU pull-out drawer type,
3G-SDI, HDMI, DVI, Audio & Tally inputs,
SDI and HDMI cross conversion,
Waveform PIP mode, vector,
Column (YRGB peak), time code.
Specification:
DISPLAY
|
Display Screen |
17.3" IPS |
Physical Resolution |
1920×1080 |
Aspect Ratio |
16:9 |
Brightness |
300cd/m2 |
Contrast |
700:1 |
Viewing Angle |
178°/178°(H/V) |
INPUT
|
3G-SDI |
1 |
HDMI |
1 |
DVI |
1 |
AUDIO |
2 (L/R) |
TALLY |
1 |
OUTPUT
|
3G-SDI |
1 |
HDMI |
1 |
AUDIO
|
Speaker |
2 |
Ear Phone Slot |
1 |
SDI FORMAT
|
SMPTE-125M |
480i(59.94)
1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
SMPTE-292M |
1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
SMPTE-296M |
720p(60/59.94/50/30/29/25/24/23.98) |
SMPTE-372M |
720p(60/59.94/50)
1080i(29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98) |
SMPTE-425M-AB
-Level A & Level B |
1080p(60/59.94/50)
1080i(60/59.94/50)
720p(60/59.94/50/30/29.97/25/24/23.98) |
ITU-R BT.656 |
576i(50) |
HDMI FORMAT
|
Full HD ~ HD |
1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
POWER
|
Current |
2.8A |
Input Voltage |
DC 10-18V |
Power Consumption |
≤32W |
ENVIRONMENT
|
Operating Temperature |
-20℃~60℃ |
Storage Temperature |
-30℃~70℃ |
DIMENSION
|
Dimension(LWD) |
482.5×44×507.5mm |
Weight |
8.6Kg |
