BM120-4KS is a 12.5" 4K resolution monitor with 3840 x 2160 native resolution. It features two HDMI 2.0 inputs that support 4K HDMI 60Hz, and it also has two HDMI 1.4b as well as a 3G-SDI, VGA, and DVI input. The monitor features a single 3G-SDI output.. It supports SDR, HDR 10,3D-LUT, peaking, false, histogram,etc.
It is built into a hard protective carry on flight case which is just about 4KG. The LCD monitor is mounted on the lid, while the inputs, outputs, power connectors, and control buttons, V mount battery plates reside in the bottom, allowing you to connect your monitor without having to access the back of the monitor. An external rail with 1.4"-20 threaded holes along the side of the case is ideal for mounting wireless devices that can be powered by the 8 VDC output from monitor, It is designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment or can be used by camera crews to shoot outdoors in the field.
Features:
- 12.5'', 4K (3840*2160) Ultra-HD native resolution

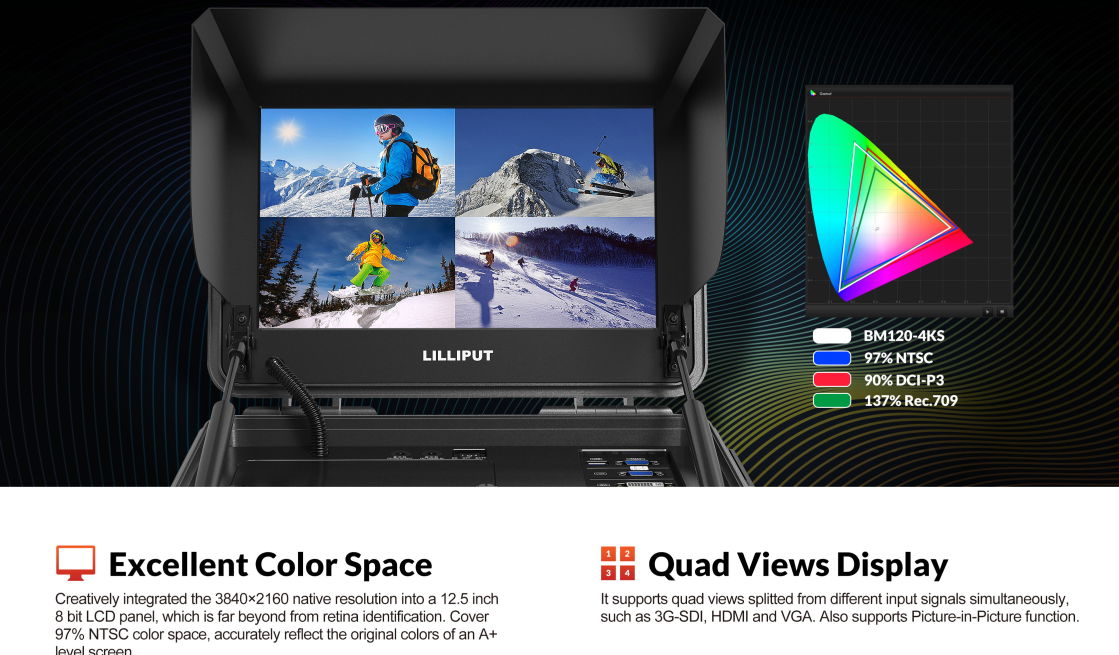

- Excellent Color space, cover 97% NTSC color space
- 1*3G-SDI input, 1*3G-SDI loop out, 2*HDMI2.0 input, 2*HDMI1.4b input, 1*VGA input, 1* DVI input, 1* Tally
- Support Quad view display
- Support HDR, 3D-LUT, Time code, Histogram, audio level meter, Peaking, False color, etc camera auxiliary functions

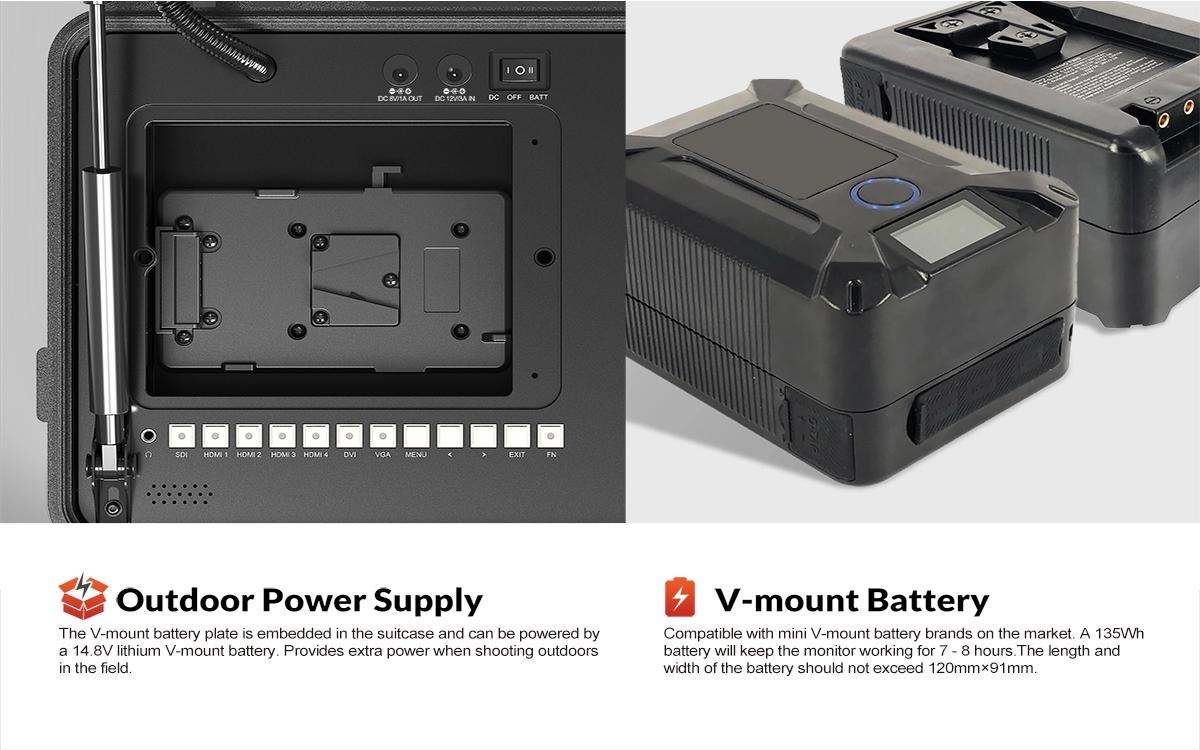

- With V mount battery plate, support V mount battery
- Packed by portable flight case, 3.98KG ONLY
- Support external wireless transmitters
- Support 10-24V wide voltage input
Parameters:
| Display |
Screen Size |
12.5 inch |
| Physical resolution |
3840 x 2160 |
| Aspect ratio |
16:09 |
| Brightness |
400cd/m |
| Contrast |
1500:1 |
| Viewing Angle |
170°/170° |
| Input |
3G-SDI |
3G-SDI(Support up to 1080p 60 hz) |
| HDMI |
HDMI 2.0×2(Support up to 4K 60hz)
HDMI 1.4b×2(Support up to 4K 30hz) |
| DVI |
1 |
| VGA |
1 |
| Audio |
2(L/R) |
| Tally |
1 |
| USB |
1 |
| Output |
3G-SDI |
3G-SDI(Support up to 1080p 60 hz) |
| Aduio |
Speaker |
1 |
| Ear Jack |
1 |
| Power |
Input Voltage |
DC 10-24V |
| Power Consumption |
≤23W |
| Battery Plate |
V-mount Battery Plate |
| Power Output |
DC 8V |
| Environment |
Opearting Temperature |
0~50℃ |
| Storage Temperature |
-10~60℃ |
| Dimension |
Dimension(LWD) |
356.8mm x 309.8mm x 122.1 mm |
| Weight |
4.35 KG (Include accessoires) |
| |
|
|
