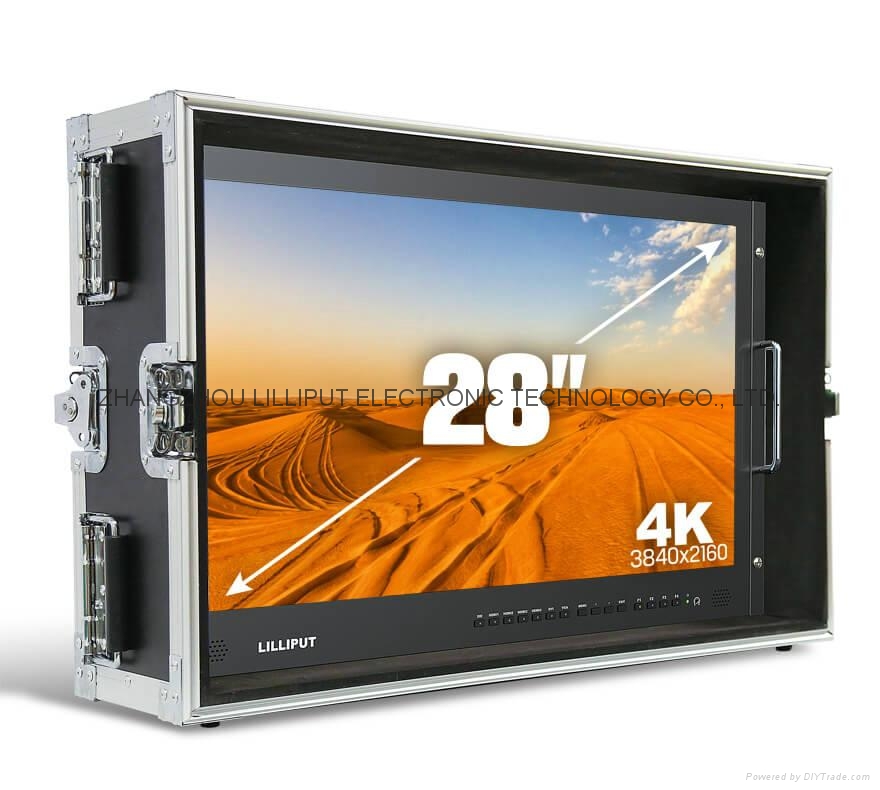

Features:
4K (3840*2160) Ultra-HD native resolution ,
28“ Big unit, large view,
High contrast: 1000:1
450cd/m² brightness,
Carry-on suitcase,
Abundant interfaces: 3G-SDI, HDMI, VGA, AV input,
Metal housing,
Wide voltage: DC12-24V.
Specification:
|
DISPLAY
|
Display Screen |
28” |
| Physical Resolution |
3840×2160, support 4K singal |
| Aspect Ratio |
16:9 |
| Brightness |
450cd/m² |
| Contrast |
1000:1 |
| Viewing Angle |
170°/160°(H/V) |
|
INPUT
|
3G-SDI |
1 |
| HDMI |
4(support 4K signal) |
| DVI |
1 |
| VGA |
1 |
| Audio |
1 |
| TALLY |
1 |
|
OUTPUT
|
3G-SDI |
1 |
|
AUDIO
|
Speaker |
2 (L/R) |
| Ear Phone Slot |
1 |
|
POWER
|
Current |
2800mA (15V) |
| Input Voltage |
DC 12-24V (XLR) |
| Battery Plate |
V-mount / Anton Bauer mount |
| Power Consumption |
≤48W |
|
ENVIRONMENT
|
Operating Temperature |
0℃～60℃ |
| Storage Temperature |
-20℃～60℃ |
|
DIMENSION
|
Dimension(LWD) |
670×425×45mm
/ 761×474×173mm (with case)
|
| Weight |
9.4kg / 23.5kg (with case) |
