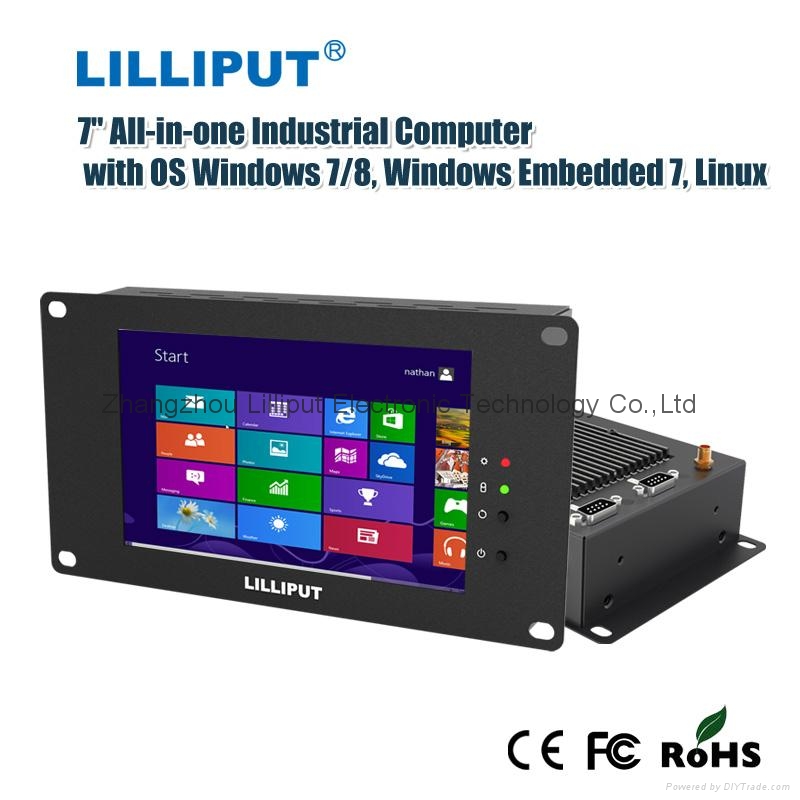

Features:
Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.
Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.
It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.
- Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM;
- 7 inch 450cd/m² brightness display with resistive touch;
- RS232 × 5, COM 2 supports RS485/232/422;
- Open frame mount method for optional;
- Wide voltage 6-32V for optional;
- Metal housing design;
- HDMI & VGA output;
- Dual Ethernet port;
Optional:
GPS, 3G, Bluetooth, Wi-Fi 802.11 b/g/n.
Applications:
- Information Display
- Digital Signage
- Advertising Terminal
- Service Kiosk
- Industrial Control
- Equipment Matching
- In-Home Control Device
- Digital Signage
- Security & Surveillance
- General Communication
- Distance Data Acquisition
- Visual Communication
- Tele-education
- Internet Surfing
- Entertainment & Multimedia Player
Parameter:
Display Screen |
7“ LED backlit |
Resolution |
800×600 (1,440,000) pixels |
Touch Panel |
4-wire resistive |
Brightness |
450cd/㎡ |
Aspect Ratio |
16:9 |
Contrast Ratio |
500:1 |
Viewing Angle |
140° / 120°(H/V) |
OS |
Windows 7/8, Windows Embedded 7, Linux |
CPU |
Intel N2800, dual-core 1.86GHz |
Memory |
2G DDR3, optional: 4GB |
Storage |
PCIe mSATA SSD 32G, support up to 128G |
Chipset |
Intel NM10 chipset |
L2 Cache |
1024KB |
Video Card |
built-in display memory |
Sound Card |
4 tracks |
Expansion |
Built-in Mini PCIe×1, optional for 3G / WIFI |

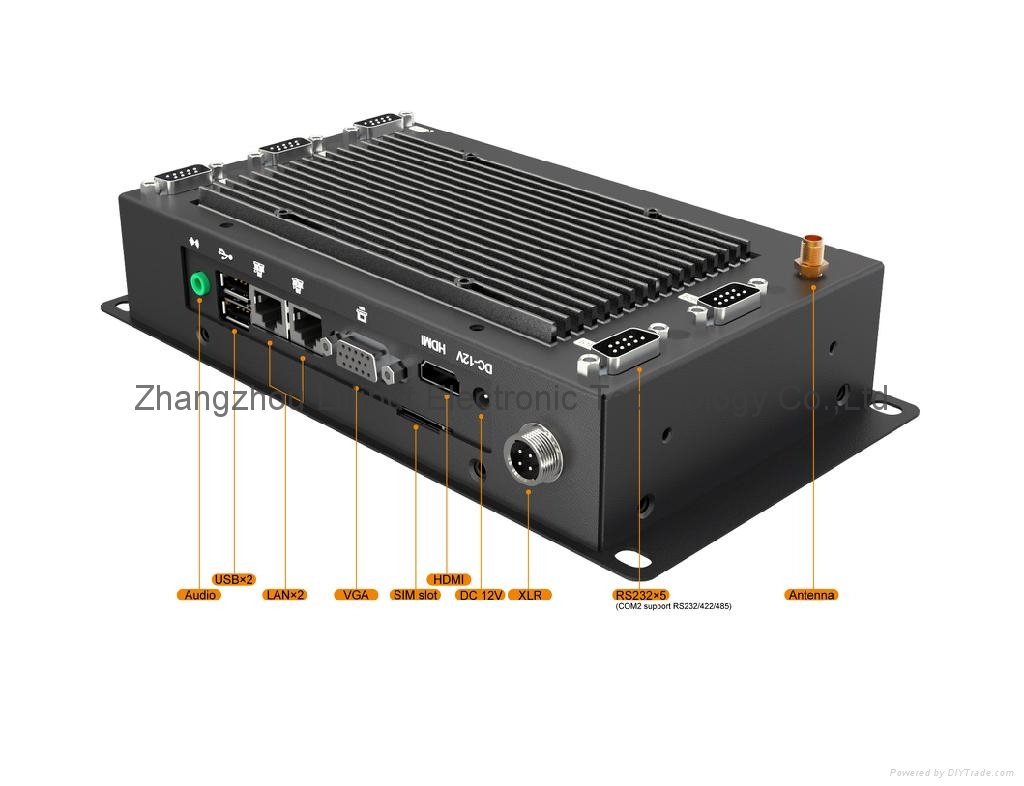

Interface |
RS232×5 (COM2 support RS232/422/485), HDMI, VGA, Audio,
DC 12V in, XLR, USB2.0×2, LAN×2, SIM slot, Antenna, |
Input Voltage |
DC 12V, optional: DC 6-32V wide voltage |
Current |
1.0~2.0A |
Power Consumption |
≤24W |
Speaker |
1W |
Working Temperature |
0~50ºC |
Storage Temperature |
-10~65ºC |
Dimension(LWD) |
200 × 117 × 46 mm |
Weight |
1225g |
Accessories:
