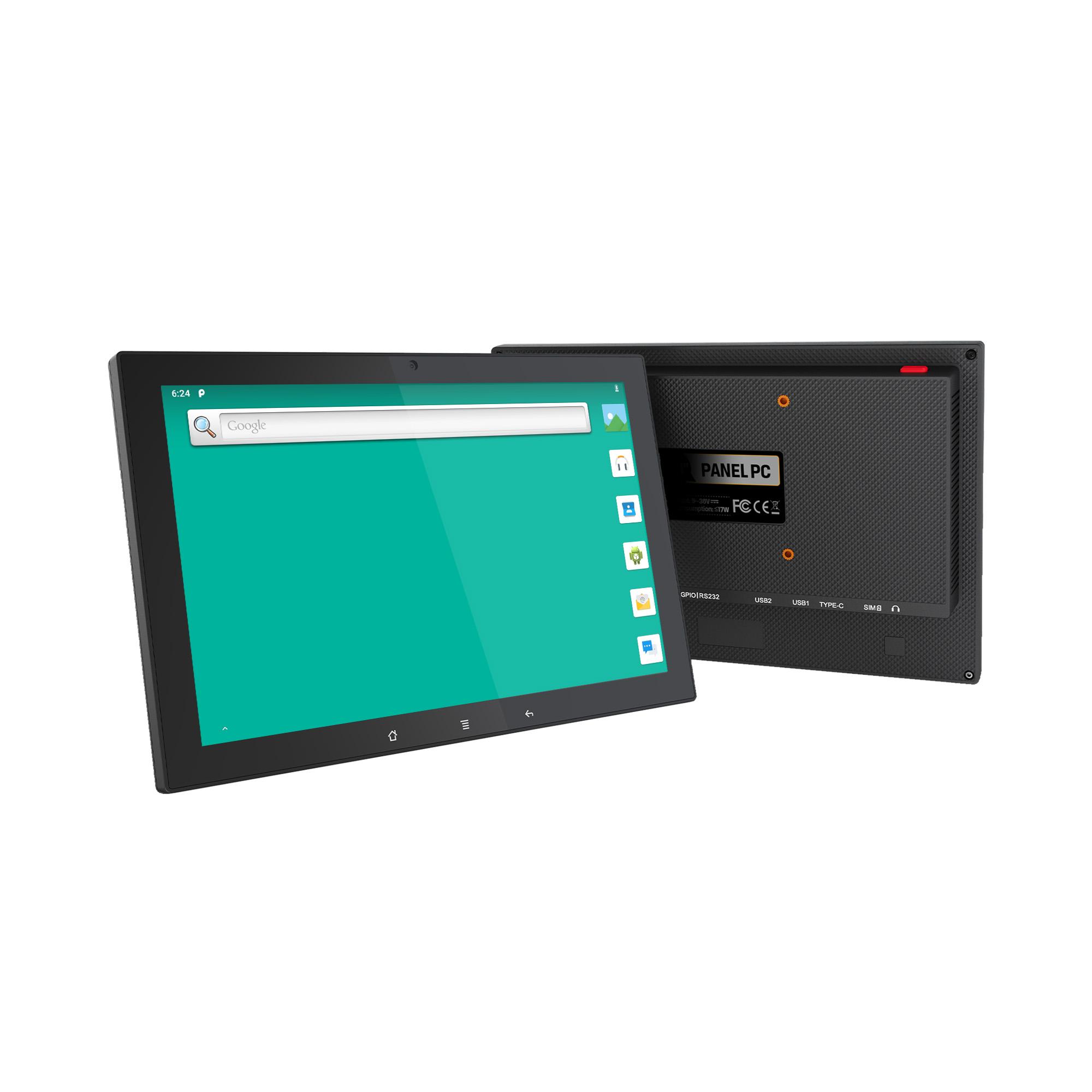

LILLIPUT 10inch Android Panel PC PC-1010R

embedded panel pc
  • embedded panel pc
  • android panel pc
  • wall mount panel
  • industrial panel pc
Model No.︰PC-1010R
Brand Name︰LILLIPUT
Country of Origin︰China
Share on:

 Total 18 Related Items
Prev12345Next

Product Description

Short Description:

This is an Android 10 OS Panel PC with a 10.1” capacitive touch function, and 1000 nits LED screen, which comes with rich interfaces and ABS plastic housing. This device can be connected through LAN, WiFi, Bluetooth and contains transmission interfaces (GPIO, RS232, etc) to be controlled by software.

Brief Features:

-10” IPS 1280x800 display,1000cd/m² higher brightness, sunlight visible&Auto dimming
- Android 10, Rockchip RK32888 Ouad-core, cortex A17, 1.8GHz CPU
- 2GB RAM & 16GB Flash; Optional: 4GB RAM & 64GB Flash
- Built in WiFi & Bluetooth, Optional:   4G LTE, Camera
- USB 2.0 host x2, RS232 x 3, GPIO x4, HDMI output x 1, LANx1;
- DC8-36V; ISO7637-2 anti-surge protection;

Application:

Self service kiosk,Customer feedback,Queuing system, Access control system,Room signage, Conference display, etc

Specification:



Model NO. PC1010R PC1010
SYSTEM CPU Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
OS Android 10  Android 9.0
RAM + ROM  2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional
GPU Mali-T764  Adreno 506
PANEL Sensors Light and Proximity Sensor (Auto dimming), Gyroscope & Acceleration  Light Sensor (Auto Dimming)
LCD  10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle
Touch Screen  Multi-point capacitive touch screen
INTERFACE LAN 1000M×1  100M×1 (PoE is optional, 25W)
GPIO  ×4 (Input×2, output×2)
COM  RS232×3
HDMI  ×1 Output, support up to 1080p
SIM  ×1
Micro SD Card  ×1, support up to 128GB
USB  USB host×2, USB Type-C OTG×1
Earphone Jack  3.5mm
WIRELESS Wi-Fi Optional 802.11a/b/g/n/ac, 2.4GHZ/5GHZ  802.11a/b/g/n/ac, 2.4GHZ/5GHZ
Bluetooth Optional 5.0, 2402MHz~2480MHz  2402MHz~2480MHz
Cellular Network Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)
GNSS  Optional (GPS, GLONASS)
NFC Without  Optional
BUILT-IN Front Camera  Optional, 5.0MP
Speaker  ×1
POWER Power Supply  DC 9~36V
Power Consumption  ≤17W  ≤12W
OTHER Dimension  249mm×166mm×32mm
Weight  980g
Environment  Operating Temp: -10°C~60°C (14°F~140°F)
 Storage Temp: -20°C~65°C (-4°F~149°F)

Product Image

embedded panel pc
embedded panel pc

android panel pc
android panel pc

wall mount panel
wall mount panel

industrial panel pc
industrial panel pc
