7" Mobile Data Terminal PC-7106

GPS system for precision agriculture
  • GPS system for precision agriculture
  • Industrial PC for vehicle
  • Rugged tablets in agriculture
  • fleet vehicle tracking device
Model No.︰PC-7106
Brand Name︰LILLIPUT
Country of Origin︰China
Share on:

 Total 18 Related Items
Prev1213141516Next

Product Description

Features:


Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.

CPU: NXP i.MX6DualLite / i.MX6Quad Cortex-A9
RAM: 1G DDR3, flash ROM: 8G eMMC
OS: Android 5.1.1, Linux Debian 8.0, WinCE 7.0
Multipoint capacitive touch screen
Comply with IP64 standard, dust & water-proof
9-36V wide power voltage
USB host 2.0×1, USB device 2.0×1
RS232×4 / RS232×3+RS485×1 / RS232×2+RS422×1+RS485×1
Gpio input×4, Gpio output×6, CAN Bus×2
Wi-Fi, bluetooth, 3G/4G, ACC & GPS for optional

Applications:

  • Information Display
  • Digital Signage
  • Advertising Terminal
  • Service Kiosk
  • Industrial Control
  • Equipment Matching
  • In-Home Control Device
  • Smart Energy Application
  • Security & Surveillance
  • General Communication
  • Distance Data Acquisition
  • Basic A/V Player
  • Navigation System

Parameters:

 Display Screen   7" LED backlit
  Resolution   800×480 (1,152,000 pixels)
  Touch Panel   Capacitive
  Brightness   450cd/㎡
  Aspect Ratio   16:9
  OS   Android 5.1.1 / Linux Debian 8.0 / WinCE 7.0
  CPU   CPU: NXP i.MX 6DualLite 800MHz ARM Cortex-A9 processor
  Optional: NXP i.MX 6Quad 1.0GHz ARM Cortex-A9 processor
  GPU   3D Vivante GC880 35Mtri/s 266Mpxl/s Open GL ES 2.0
  Memory   RAM: 1G DDR3, flash ROM: 8G eMMC
  Expansion Storage   Micro SD (TF) card
  LAN   Ethernet 1000M (RJ45)
  Transfer Interface   USB Host 2.0×1, USB Device 2.0×1
  RS232×4 / RS232×3+RS485×1 / RS232×2+RS422×1+RS485×1
  GPIO input×4, GPIO output×6
  Audio   Ear phone slot ×1
  Speaker (front) ×1
  Speaker   1W
  Power consumption   9W
  Charging consumption   24W
  Working Temperature   -20 ~ 60ºC
  Storage Temperature   -30 ~ 70ºC
  Power Supply   DC 9-36V
  Dimension(LWD)   220 × 132 × 36.5 mm
  Weight   740g



Accessories:

Optional Accessories

  • Extended cable                         Power adapter                       Driver disk                     Operation manual

  • VESA 75mm rail slot      2200mAh Li-ion battery

  •

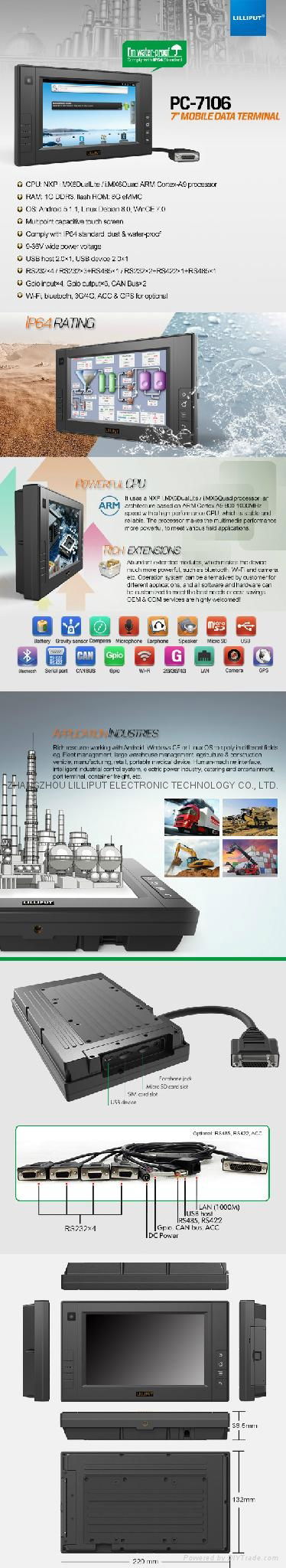

Product Image

GPS system for precision agriculture
GPS system for precision agriculture

Industrial PC for vehicle
Industrial PC for vehicle

Rugged tablets in agriculture
Rugged tablets in agriculture

fleet vehicle tracking device
fleet vehicle tracking device
