Lilliput 7" LCD Camera-top Monitor with HDMI input for DSLR(664/P)

Camera Monitor
  • Camera Monitor
  • Field Monitor
  • HDMI MONITOR
Model No.︰664,664/P
Brand Name︰LILLIPUT
Country of Origin︰China
Share on:

 Total 50 Related Items
Prev3940414243Next

Product Description
Lilliput 7" LCD Camera Monitor with Broadcast Quality for DSLR& Full HD Camcorder. (664)

IPS panel wide viewing angles,
Shutter shortcut button
178° Wide viewing angles
High resolution: 1280 × 800
High brightness: 400cd/m2
High contrast: 800: 1,
Faster response time,
Wide voltage: DC 7-24V,
Slimmer design, 365g only
POP-UP shortcut menu,

Advanced Functions:
Peaking Filter, False Colors, Histogram, Exposure, Center Marker, Safety Marker, Aspect Marker, Check Field, Color Bar, Aspect Ratio, Camera, PIP, Image Flip, 8X Zoom, Pixel-to-Pixel, Freeze Input, Underscan/Overscan, Flip H/V & Level Meter.

664 (HDMI input)
664/P (HDMI input, Advanced Functions)
664/O (HDMI input & output)
664/O/P (HDMI input & output, Advanced Functions)
Specifications︰Parameters:

Panel: 7" IPS
Physical Resolution: 1280× 800, support: 1920× 1080
Aspect Ratio: 16:09
Brightness: 400cd/m²
Contrast: 800:01:00
Viewing Angle: 178° / 178° (H/V)
Input Signal: HDMI , AV
Output Signal: HDMI
Audio Speaker×1(built-in), Ear Phone Slot×1(built-in)
Current: 960mA
Input Voltage: DC 7-24V
Battery Plate: V-mount, Anton Bauer mount, F-970, QM91D, DU21, LP-E6
Power Consumption: ≤12W
Operating Temperature: -20º C ~ 60º C
Storage Temperature: -30º C~ 70º C
Dimension(LWD: 184.5×131×23mm
Weight: 365g

Accessories:

Folding sun shade cover: 1 piece
Shoe mount: 1 piece
Battery plate (F-970, QM91D, DU21 or LP-E6): 2pieces
HDMI A/C cable: 1 piece
DC 12V adapter: 1 piece
Composite cable: 1 piece
Shutter release cable: 2 pieces
Manual: 1copy
Battery plate bracket: 1 piece
V-mount battery plate: 1 piece (optional)
Anton Bauer mount battery plate: 1 piece (optional)
Suitcase: 1 piece (optional)

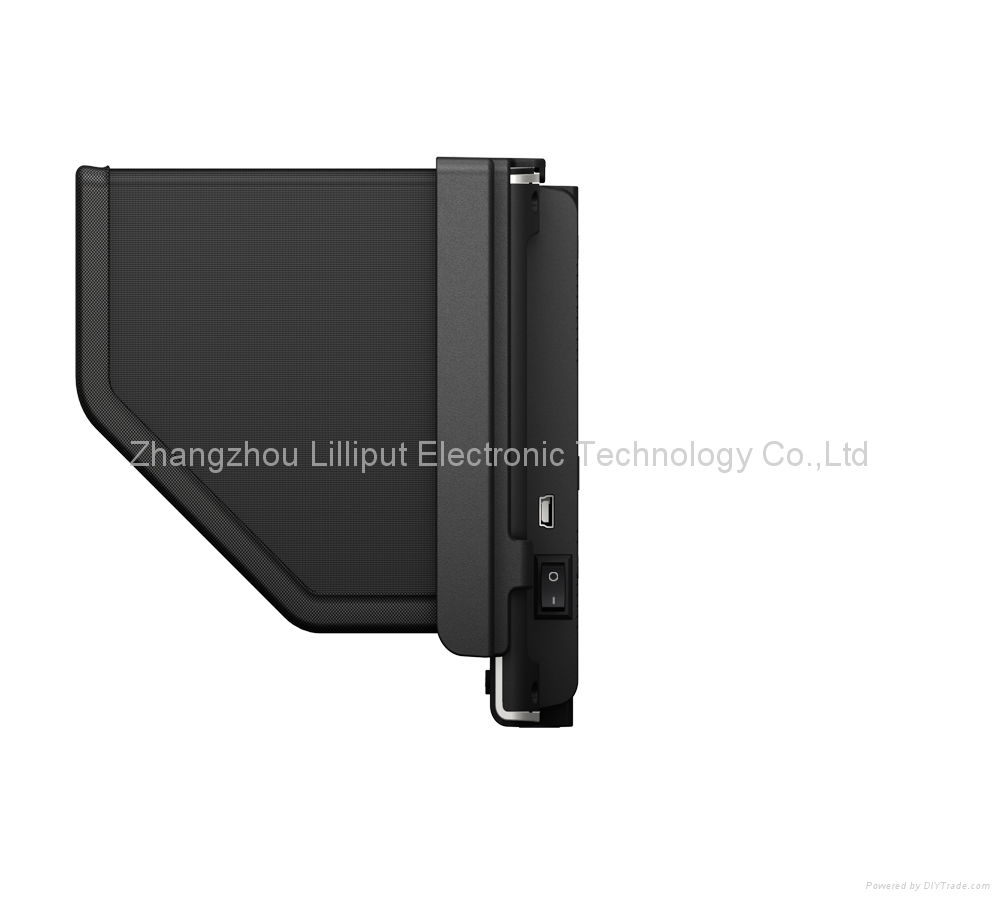

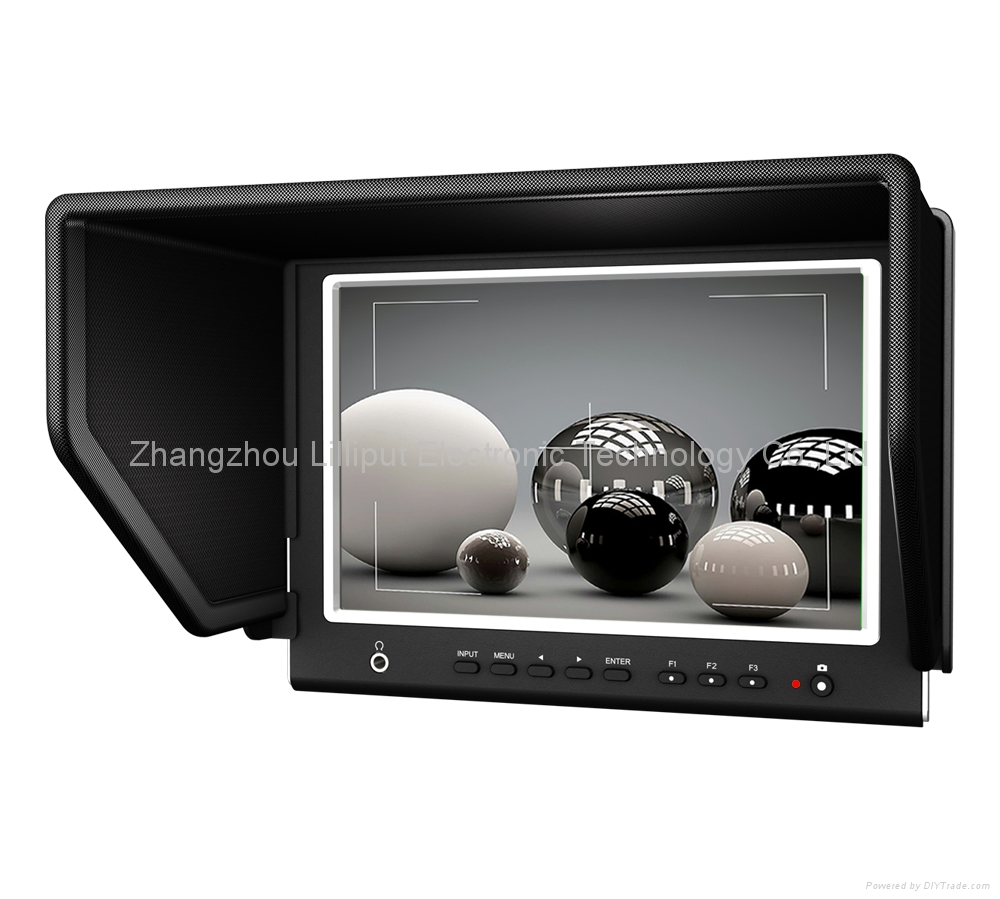

Product Image

Camera Monitor
Camera Monitor

Field Monitor
Field Monitor

HDMI MONITOR
HDMI MONITOR
