Short Description:

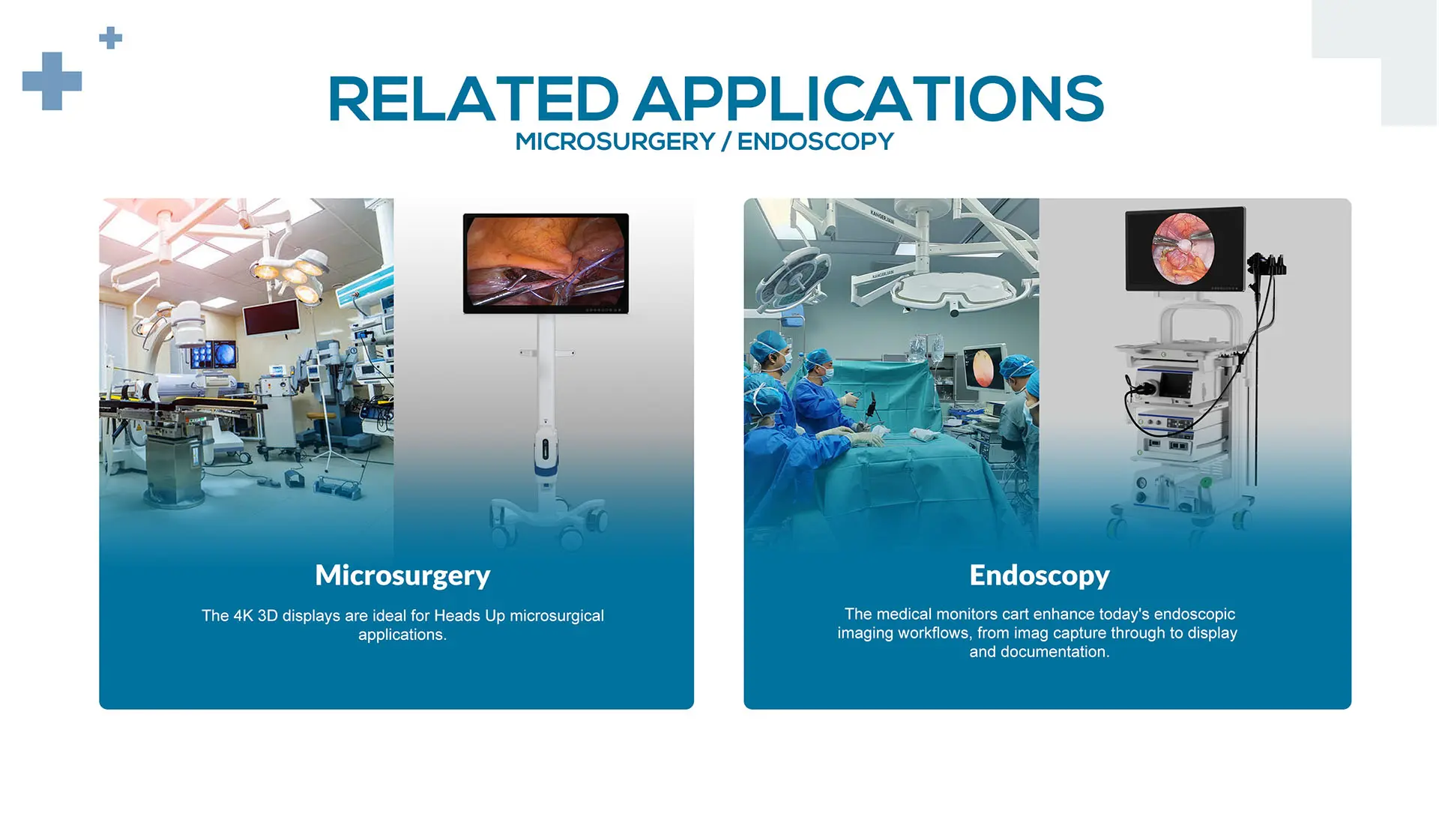

MD31 is a 31.5" 4K surgical monitor for endoscopy and surgery, with accurate color reproduction, clear contrast and vivid video images, providing surgeons and operating staff with real-time, accurate color images. Antibacterial housing and optical bonding technology are easy to clean and disinfect. A variety of video input andoutput interfaces can accommodate video signals from various medical imaging sources to meet the requirements of various applications in the operating room.
- Optical bonding process, anti-glare glass panel
- Anti-reflective, anti-fingerprint coating
- 4K (3840x2160) resolution, 10 bit LCD panel
- REC709 & BT.2020 4K compatible, support HDR display
- Color calibration gamma 1.8 - 2.6, compliant with DlCOM Part 14
- Multiview display (Dual screen / PlP / PBP / Quad-Split)
- Optional high-sensitivity touch (Supports alcohol / glove touch)
- IP54 rating for front panel
- DP daisy chain output
- Support image rotation and mirroring
- 12G-SDl video signal input and loop-through
Specification:
| DISPLAY |
Panel |
31.5" 10 bit |
| Physical Resolution |
3840 x 2160 |
| Viewing Area |
697.3056(H)mm x 392.2344(V)mm |
| Pixel Pitch |
0.18159(H)mm x 0.18159(V)mm |
| Aspect Ratio |
16:9 |
| Brightness |
350 cd/㎡ |
| Contrast |
1000:1 |
| Viewing Angle |
178°H / 178°V |
| Light Source |
LCD |
| Coating |
Anti-reflective, anti-fingerprint |
| Gamma |
Native / 1.8 / 2.0 / 2.2 / 2.4 / 2.6 / DICOM |
| Color Calibration |
BT.709 / BT.2020 |
| Lifetime |
30000h |
| Response Time |
≤14ms |
| INTERFACE |
Power |
DC x1 |
| Software Upgrade |
USB x1 |
| Control |
LAN x1 |
| RS232 x1 |
| Signal Input |
12G-SDI x2 |
| DP x1 |
| HDMI2.0 x1 |
| DVI x1 |
| Signal Output |
12G-SDI x2 |
| DP (MST) x1 |
| MENU |
Function Key |
POWER, INPUT, MENU, <, >, EXIT, F1 (PIP),F2 (Gamma), LOCK |
| Menu Language |
Chinese / English |
| POWER |
Input Voltage |
15V |
| Power Consumption |
≤60W |
| ENVIRONMENT |
Operating Temperature |
0°C-50°C |
| Storage Temperature |
-20°C-60°C |
| OTHER |
Dimension(LWD) |
747.4mm x 464mm x 64.5mm |
| Weight |
12kg |
| Certification |
IEC 60601-1、EN 60601-1 |
