Short Description:
The bedside infotainment terminal is designed for the hospital and clinical environment. It integrates a computer, television, phone and nurse call button into a single, easy-to-use, touch-screen product that provides patients with entertainment, communication, self-service and education options. It‘s also capable of managing clinical records from the bedside in real time, visual control from the nursing station or communication and attention with doctors in wards, hospitals.
Brief Features:
- 15.6 " 1920 X 1080 IPS LCD
- 10-point capacitive multi-touch screen, with anti-bacterial antiviral, alcohol, support gloves touch
- Anti-bacterial housing, IP65 front panel
- High-performance Qualcomm processor
- Android13 OS, 4G RAM +64G Flash
- Handset for service call, key buttons and remote control (optional)
- Built-in 16 MP X COMOS camera & reading light
- Support WIFI, Bluetooth, 4G Module, RFID/NFC reader (optional)
- With COM, Earphone, type C, LAN ports, POE/POE+ (optional)
- Comply with IEC60601-1, EN60601-1, ISO22196, CE, FCC

Specification:
|
SYSTEM
|
Processor |
Qualcomm ARM KryoTM260 processor, Octa-core 64bit |
| Graphic |
Adreno TM 610 |
| RAM |
4G DDR4 (default) / 8GB (optional) |
| ROM |
64G UFS (default) / 128GB (optional) |
| OS |
Android 13 |
| Video |
Encoding:4K@30fps,H.264P8; Decoding:4K@30fps, H.264P8P9, 1080p@30fps, MPEG-2 |
| Audio |
EVRC, EVRC-B, EVRC-WB, G.711, G.729AAB, GSM-FR, GSM-EFR, GSM-H, AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR |
| DISPLAY |
LCD panel |
15.6",IPS |
| Resolutions |
1920(H)x1080(V) |
| Brightness |
250cd/㎡ |
| Contrast Ratio |
800:1 |
| View Angle (°) |
85/85(L/R),85/85(U/D) |
| Touch Panel |
Sensitive 10-point capacitive touch screen |
|
FUNCTION
|
WiFi |
IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz |
| Bluetooth |
Bluetooth 5.0 |
| 3G/4G |
Support (optional) |
| RFID |
Combo smart card reader & Mifare RFID (optional) |
| Camera |
16 MP CMOS front camera |
| Handset |
Full-function handset with remote control (optional) |
| Speaker |
4Ω/3W x 1 |
| Sensor |
Light Sensor |
| Function Key |
Brightness, Home, Return, Channel-, Channelt, Backlight, Vol, Volt, Lamp |
|
USER INTERFACE
|
I/O Ports |
Earphone Jack x 2 |
| Handset Jack x 1 |
| USB HOST 2.0 x 2 |
| USB-C x 1 |
| Micro SD Card Slot x 1 |
| Nano SIM Card Slot x 1 |
| RJ45 100M x 1 (POE+, 25W, optional) |
| HDMI In x 1 |
| RS232 x 1 |
| Internal Microphone x 1 |
|
OTHER
|
DC In |
9-36V DC |
| Power Consumption |
≤18W |
| Operating Temp. |
0°C to +50°C |
| Storage Temp. |
-20°C to +60°C |
| Dimensions(LWD) |
399.7 x 268.3 x 39 mm |
| Weight |
1.8kg (without handset);2.3kg (with handset) |
| ACCESSORIES |
Standard |
Power Adaptor |
| Optional |
Handset |
|
CERTIFICATION
|
IEC 60601-1,EN 60601-1,CE,FCC |
| ISO 22196 |
|
SYSTEM
|
Processor |
Qualcomm ARM KryoTM260 processor, Octa-core 64bit |
| Graphic |
Adreno TM 610 |
| RAM |
4G DDR4 (default) / 8GB (optional) |
| ROM |
64G UFS (default) / 128GB (optional) |
| OS |
Android 13 |
| Video |
Encoding:4K@30fps,H.264P8; Decoding:4K@30fps, H.264P8P9, 1080p@30fps, MPEG-2 |
| Audio |
EVRC, EVRC-B, EVRC-WB, G.711, G.729AAB, GSM-FR, GSM-EFR, GSM-H, AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR |
| DISPLAY |
LCD panel |
15.6",IPS |
| Resolutions |
1920(H)x1080(V) |
| Brightness |
250cd/㎡ |
| Contrast Ratio |
800:1 |
| View Angle (°) |
85/85(L/R),85/85(U/D) |
| Touch Panel |
Sensitive 10-point capacitive touch screen |
|
FUNCTION
|
WiFi |
IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz |
| Bluetooth |
Bluetooth 5.0 |
| 3G/4G |
Support (optional) |
| RFID |
Combo smart card reader & Mifare RFID (optional) |
| Camera |
16 MP CMOS front camera |
| Handset |
Full-function handset with remote control (optional) |
| Speaker |
4Ω/3W x 1 |
| Sensor |
Light Sensor |
| Function Key |
Brightness, Home, Return, Channel-, Channelt, Backlight, Vol, Volt, Lamp |
|
USER INTERFACE
|
I/O Ports |
Earphone Jack x 2 |
| Handset Jack x 1 |
| USB HOST 2.0 x 2 |
| USB-C x 1 |
| Micro SD Card Slot x 1 |
| Nano SIM Card Slot x 1 |
| RJ45 100M x 1 (POE+, 25W, optional) |
| HDMI In x 1 |
| RS232 x 1 |
| Internal Microphone x 1 |
|
OTHER
|
DC In |
9-36V DC |
| Power Consumption |
≤18W |
| Operating Temp. |
0°C to +50°C |
| Storage Temp. |
-20°C to +60°C |
| Dimensions(LWD) |
399.7 x 268.3 x 39 mm |
| Weight |
1.8kg (without handset);2.3kg (with handset) |
| ACCESSORIES |
Standard |
Power Adaptor |
| Optional |
Handset |
|
CERTIFICATION
|
IEC 60601-1,EN 60601-1,CE,FCC |
| ISO 22196 |
|
|
|
|

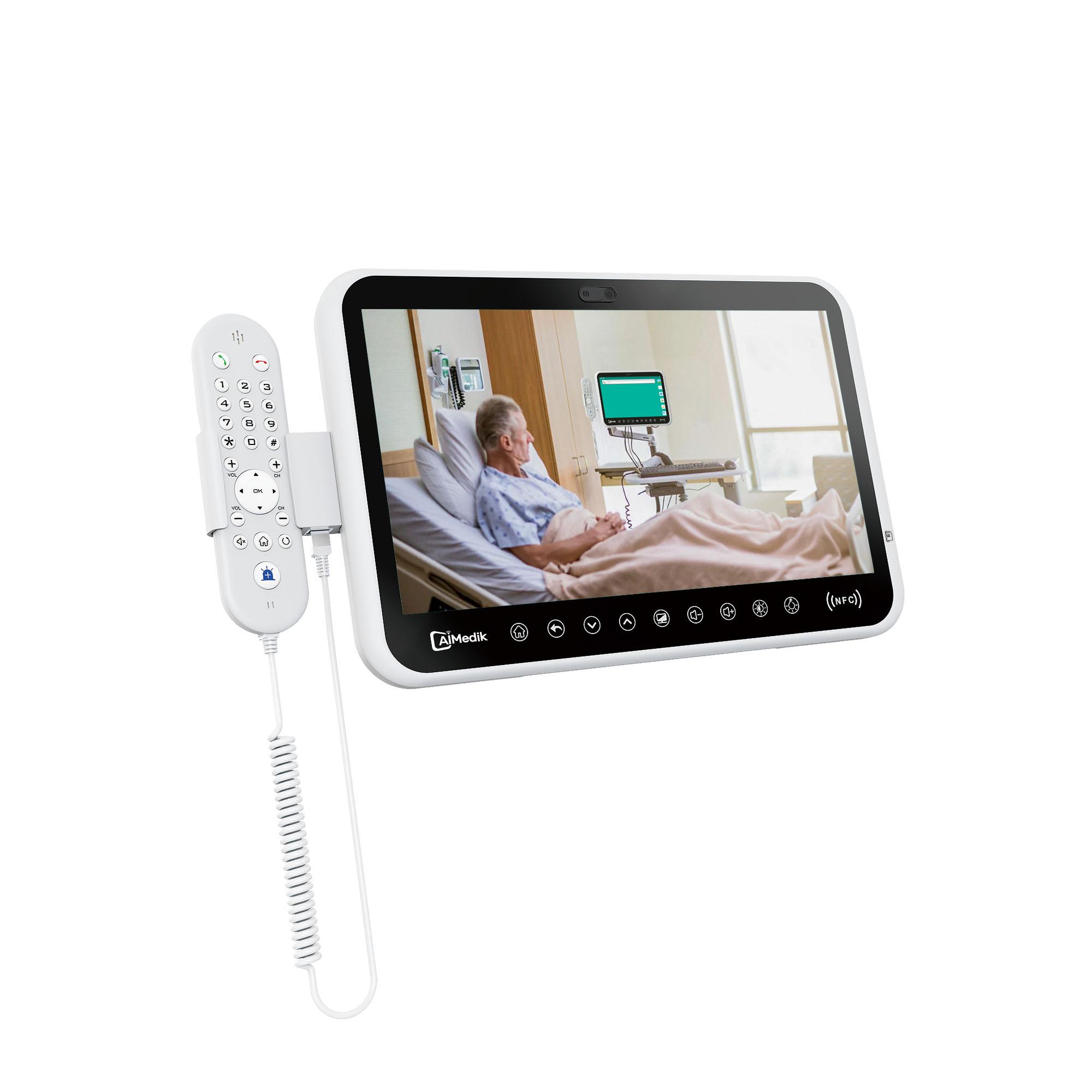

Product Image
|
|
Bedside infotainment terminal
Bedside medical tablet
Interactive Patient TV
|
|
|
|
