7 inch Industrial High Brightness Touch Panel PC

industrial panel pc
  • industrial panel pc
  • touch panel pc
  • 7inch touch pc
  • industrial pc
Model No.︰PC-703
Country of Origin︰China
Share on:

 Total 19 Related Items

Product Description

Short Description:

Lilliput 7 inch high brightness touch panel PC has a stable and reliable system, and the panel PC with rich interfaces, such as Wireless / BT communication and flexible I/O interfaces to meet different application area needed ,such as personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and so on.


• Display:              7" 800×480 resolution, 1000 nit, Capacitive touch screen
• Processor:          Intel® J1900, 2.0GHz quad-core processor
• OS:                     Windows 10 (unactivated) / Linux
• IP:                       IP65 waterproof and dustproof
• Memory:            4GB +120GB(8Gb for optional)
• Function:           Wifi+bluetooth
• Interface:           LAN*2, HDMI, VGA,  COM1 support RS232, COM2 support RS232/RS422/RS485. USB2.0*1, USB3.0*2
• Application:       Industrial Control


Model No. PC-703
Touch Panel Multi-point capacitive touch screen
Display 7″
Resolution 800*480
Brightness 1000cd/m2
Power / Other
Power Supply DC12V

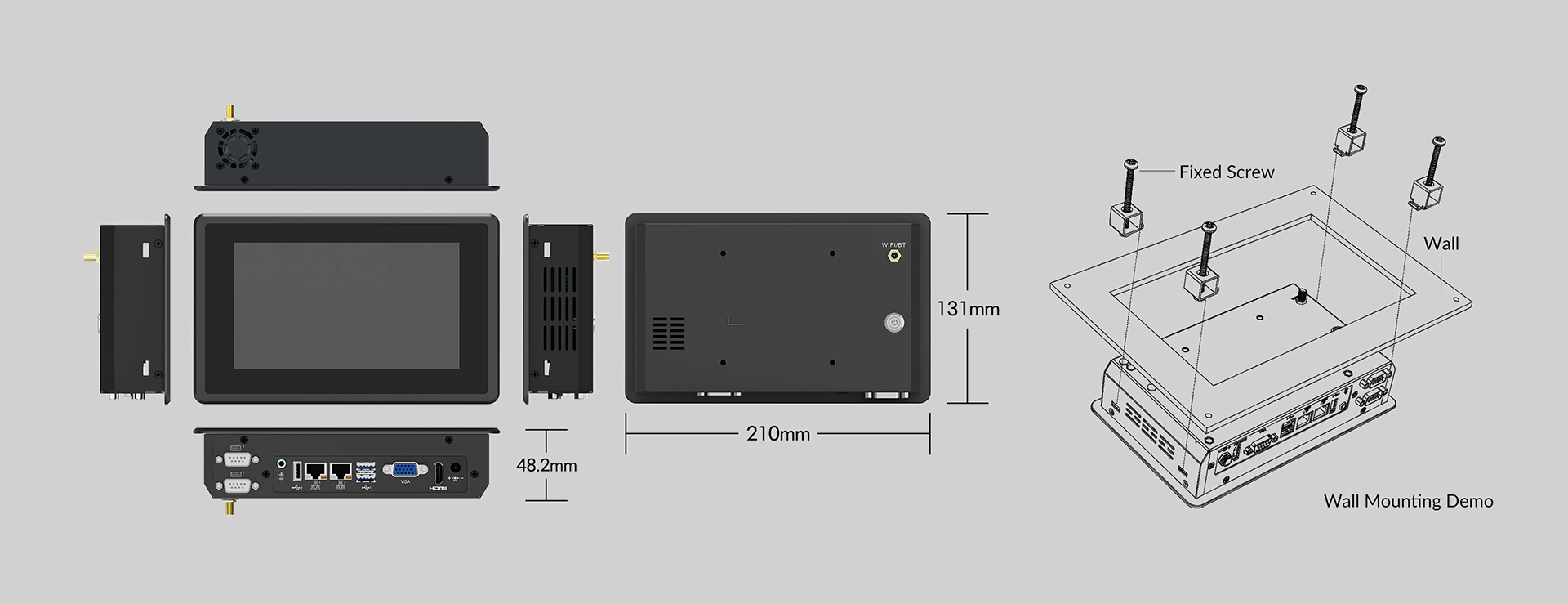

Dimension 210X131X48.2MM
Weight 985G
CPU Intel J1900,2.0GHz quad-core processor
RAM 4GB (8GB is optional)
ROM 120GB (Support up to 1TB)
GPU Integrated Intel HD Graphics
OS (Optional) Linux/Winows 10
HDMI Output  x1 ,support up to 1080p 60Hz
USB USB 3.0 host x 3, USB2.0 host x 1
Audio Output Audio Output x 1, green port
DC Power DC power input
COM (DB-9) COM1 support RS232, COM2 Support RS232/RS485
VGA Output x1, support up to 1080p 60Hz
LAN 1000M  x 2
WIFI  802.11a/b/g/n, 2.4GHz
B/T 2402MHz~2480MHz


Product Image

industrial panel pc
industrial panel pc

touch panel pc
touch panel pc

7inch touch pc
7inch touch pc

industrial pc
industrial pc
