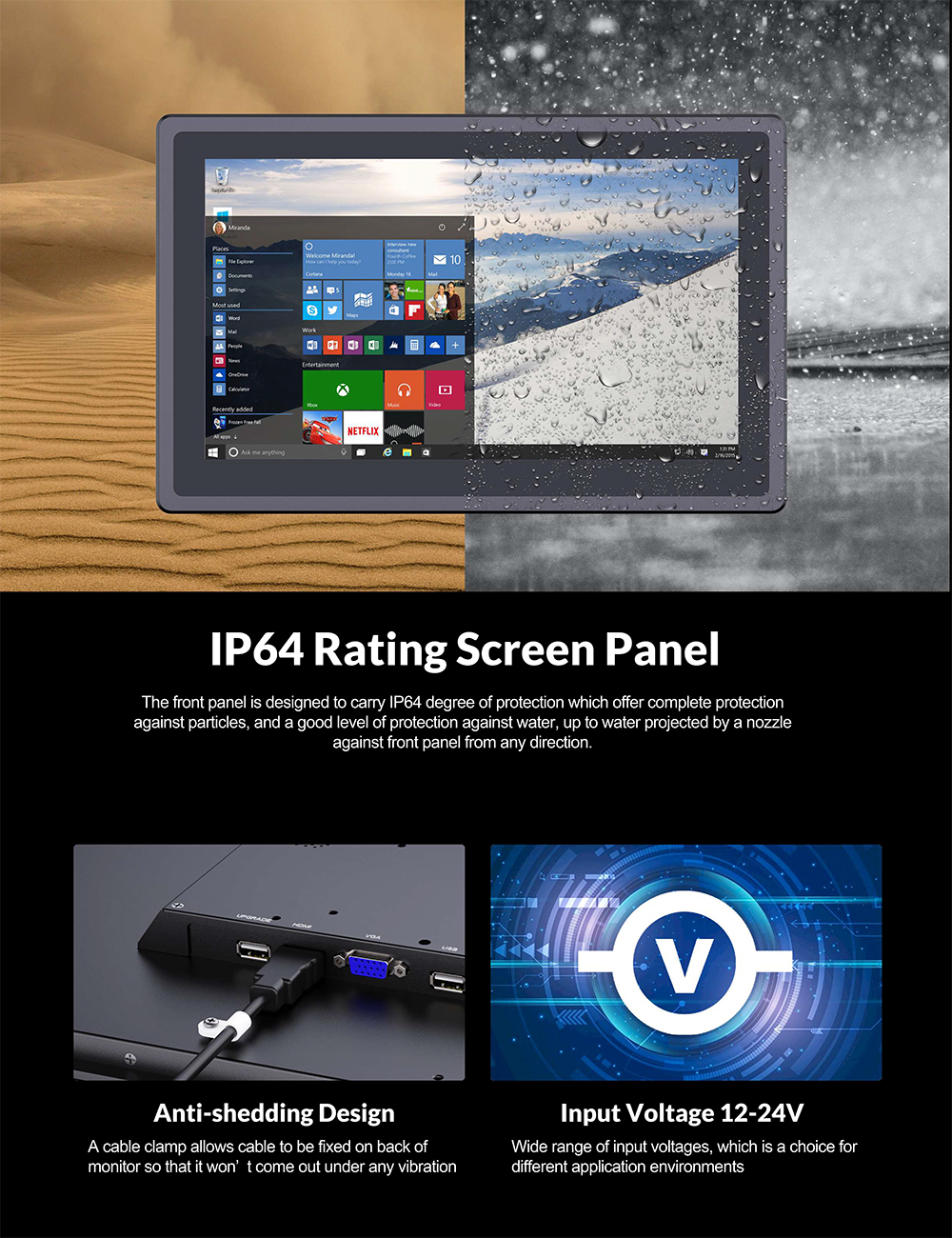

Lilliput 15.6 inch Industrial capacitive touch monitor with 1000 nits high brightness IP64 waterproof for front panel
Specification:
| DISPLAY |
Touch Screen |
10-point capacitive touch (no touch available) |
| Panel |
15.6” LCD |
| Physical Resolution |
1920×1080 |
| Aspect Ratio |
16:9 |
| Brightness |
1000 nits |
| Contrast |
1000:1 |
| Viewing Angle |
160° / 160° (H/V) |
| INPUT |
HDMI |
1 × HDMI 1.4b |
| VGA |
1 |
| AV |
1 |
| SUPPORTED FORMATS |
HDMI |
2160p 24/25/30, 1080p 24/25/30/50/60 |
| 1080i 50/60, 720p 50/60… |
| AUDIO IN/OUT |
Speaker |
2 |
| HDMI |
2ch |
| Ear Jack |
3.5mm – 2ch 48kHz 24-bit |
| POWER |
Input Voltage |
DC 12-24V |
| Power Consumption |
≤24.5W (15V) |
| ENVIRONMENT |
Operating Temperature |
-20°C~60°C |
| Storage Temperature |
-30°C~70°C |
| DIMENSION |
Dimension(LWD) |
408mm × 259mm × 36.5mm |
| Mounting Type |
VESA 75mm&100mm, Wall mount |
| Weight |
2.9kg |
LILLIPUT Factory
LILLIPUT, established in 1993, specializes in LCD Monitor which includes Industrial Touch Monitor, Rugged Tablet PC, Industrial PC, On-camera Monitor, 4K Director Monitor, as well as USB Powered Monitor.
As a factory, we have our own Tooling Injection Plant, SMT lines and Production lines with about 200 skillful workers. We have our own R&D team with more than 40 hardware and software engineers to research and design from appearance to hardware and software design.
ODM / OEM Services
We are able to provide ODM / OEM service to customize devices according to your requirements. And we can provide technical support and good after-sale service for you.
