LILLIPUT 7" Camera Monitor with HD-SDI, HDMI & YPbPr Input

  • LILLIPUT 7" Camera Monitor with HD-SDI, HDMI & YPbPr Input
  • LILLIPUT 7" Camera Monitor with HD-SDI, HDMI & YPbPr Input
  • LILLIPUT 7" Camera Monitor with HD-SDI, HDMI & YPbPr Input
  • LILLIPUT 7" Camera Monitor with HD-SDI, HDMI & YPbPr Input
  • LILLIPUT 7" Camera Monitor with HD-SDI, HDMI & YPbPr Input
Model No.︰667GL-70NP/H/Y
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 42 Related Items
Prev3839404142Next

Product Description

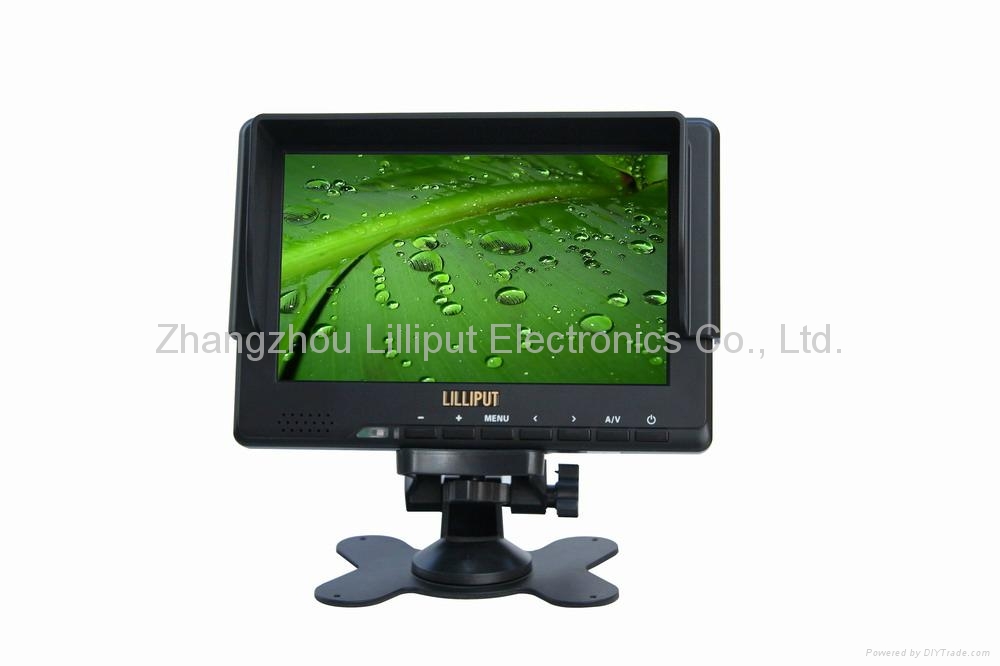

7" LCD Video Monitor with HD-SDI, HDMI & YPbPr Input:

Specific LCD Monitor by LILLIPUT Uses for Full HD Video Camera
Seizing much more clear world
Application for Full HD Video Camera in CCTV Monitoring and Making Movies

HD-SDI\HDMI & YPbPr Input, to connect with Full HD Video Camera,
LCD 16: 9 Aspect Ratio, max 1920× 1080 pixels,
To connect with Full HD Video Camera, as sub-monitor when CCTV Monitoring or Making Movies,
High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine,
Multi mounting methods to view under different angles,
High capacity rechargeable Li-ion battery, make power cables free.

Specifications︰Panel Size: 7"TFT LCD (16: 9)
Resolution: 800× 480, up to 1920× 1080
Brightness: 450CD/m² (optional: 250CD/m² )
Contrast: 500: 1
Viewing Angle: 120° / 140° (H/V)
Input Voltage: DC 12V (XLR DC Connection)
Input Signal: HD-SDI(optional), HDMI, YPbPr, AV1/AV2
Battery: 4200mAh/7.2V (external) (optional)
Current: 650mA
Standby Current: ≤ 50mA
Power Consumption: ≤ 8W
Audio Output: ≤ 1W
Speaker: × 1(front)
Size(LWD): 188× 131× 33mm/194× 134× 73mm (with sun shade)
Weight: 510g / 568g (with sun shade)


Accessories:
Sun shade: 1 Piece
DV Battery Mount Plate A: 1 Piece
DV Battery Mount Plate B: 1 Piece
12V1.2A DC adapter: 1 Piece
Remote control: 1 Piece
Manual: 1 Copy
Bracket: 1Piece
4200mAh/7.2V Li-ion battery (optional): 1 Piece
HDMI to mini HDMI cable (optional): 1 Piece
Shoe mount (for camera only) (optional): 1 Piece

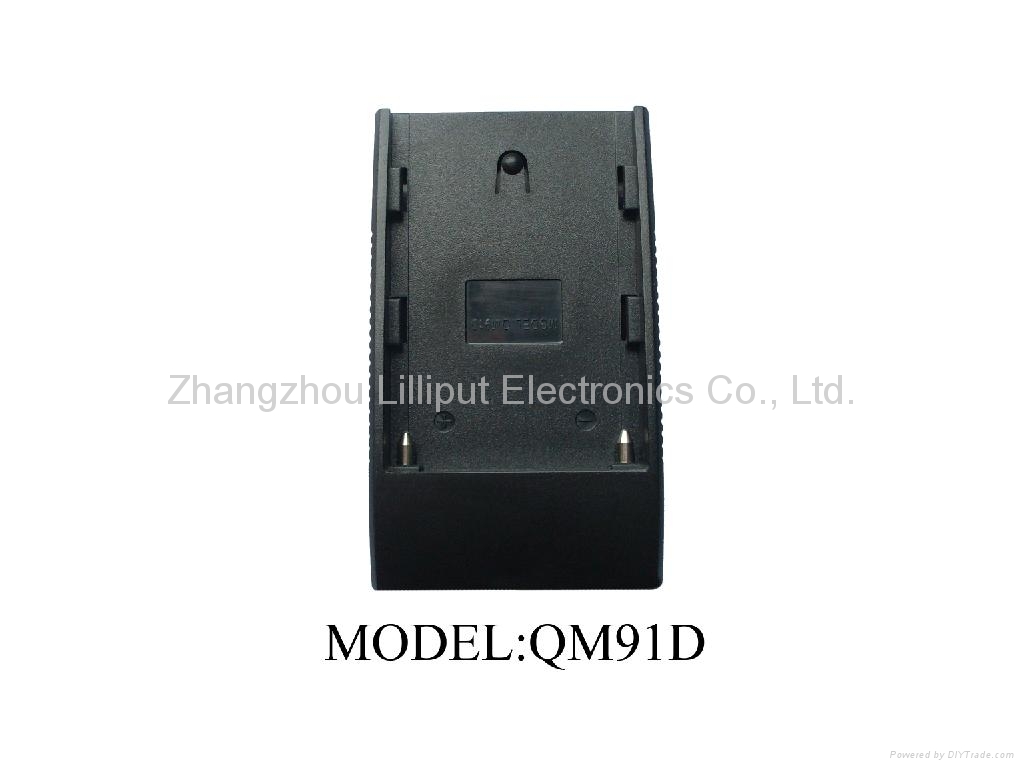

DV Battery Mount Plate:

Model A for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi DZ-HS303SW/BZ-BP14S/DZ3200/BP07W

Model B for battery of Sony DV: DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV116/DCR-DVD/PS105K/300K/10P/1E series

Advantages︰This type of monitor is with RGB mono display.
View both in normal screen and full screen.
Can switch between RGB monochromatic display in red, green, blue, B&W color.
Easier use for anyone.
Best choice to use outdoor under sunshine.
