LILLIPUT 7'' Ultra Brightness Industrial Touch Monitor

Ultra brightness monitor
  • Ultra brightness monitor
  • Industrial monitor
  • touch HDMI monitor
  • metal case industrial monitor
  • industrial touch monitor
Model No.︰TK701T
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 18 Related Items
12345Next

Product Description

Short Description:

LILLIPUT monitor TK701 comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP64 front panel design is a great convenience for installation methods and applications.

Brief Features:

7'', 800×480 high resolution,
1000nits high brightness, auto dimming function
Touch panel: 10-point capacitive touch,
HDMI, VGA, Composit video and Audio inputs,
Metal housing design,IP64 front panel
VESA & fixed bracket mount methods.
DC 12-24V Wide Voltage



Specification:



DISPLAY Touch Screen 10-point capacitive touch (no touch available)
Panel 7” LCD
Physical Resolution 800×480
Aspect Ratio 16:10
Brightness 1000 nits
Contrast 1000:1
Viewing Angle 140° / 120° (H/V)
INPUT HDMI 1 × HDMI 1.4b
VGA 1
AV 2
Audio 1
SUPPORTED
FORMATS
HDMI 2160p 24/25/30, 1080p 24/25/30/50/60
1080i 50/60, 720p 50/60…
AUDIO IN/OUT Speaker 1
HDMI 2ch
Ear Jack 3.5mm – 2ch 48kHz 24-bit
POWER Input Voltage DC 12-24V
Power Consumption ≤8.5W (12V)
ENVIRONMENT Operating Temperature -20°C~60°C (-4°F~140°F)
Storage Temperature -30°C~70°C (-22°F~158°F)
Water-proof IP x4 front panel
Dust-proof IP 6x front panel
DIMENSION Dimension(LWD) 210mm × 131mm × 34.2mm
Wall Mount Slot ×4
Weight 710g

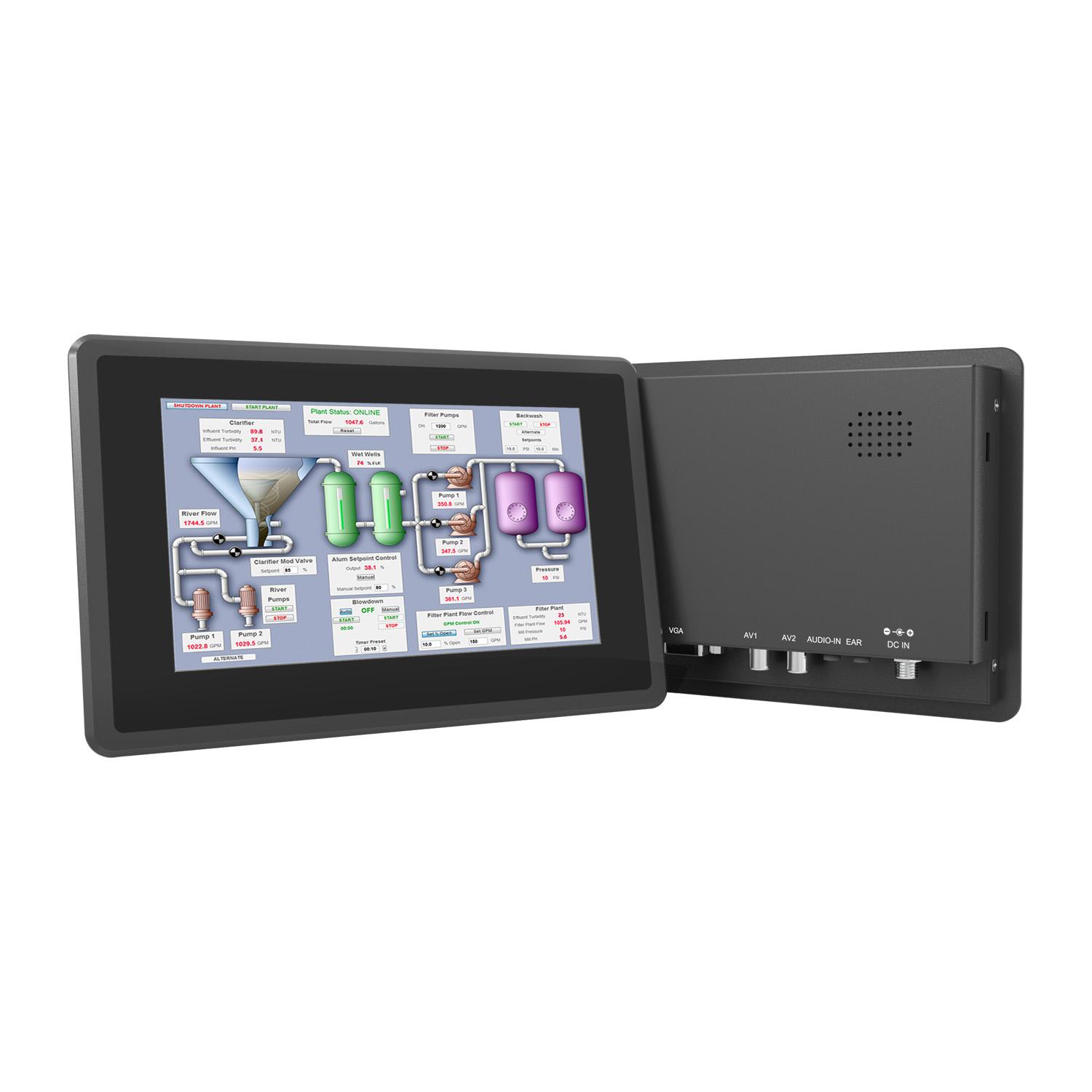

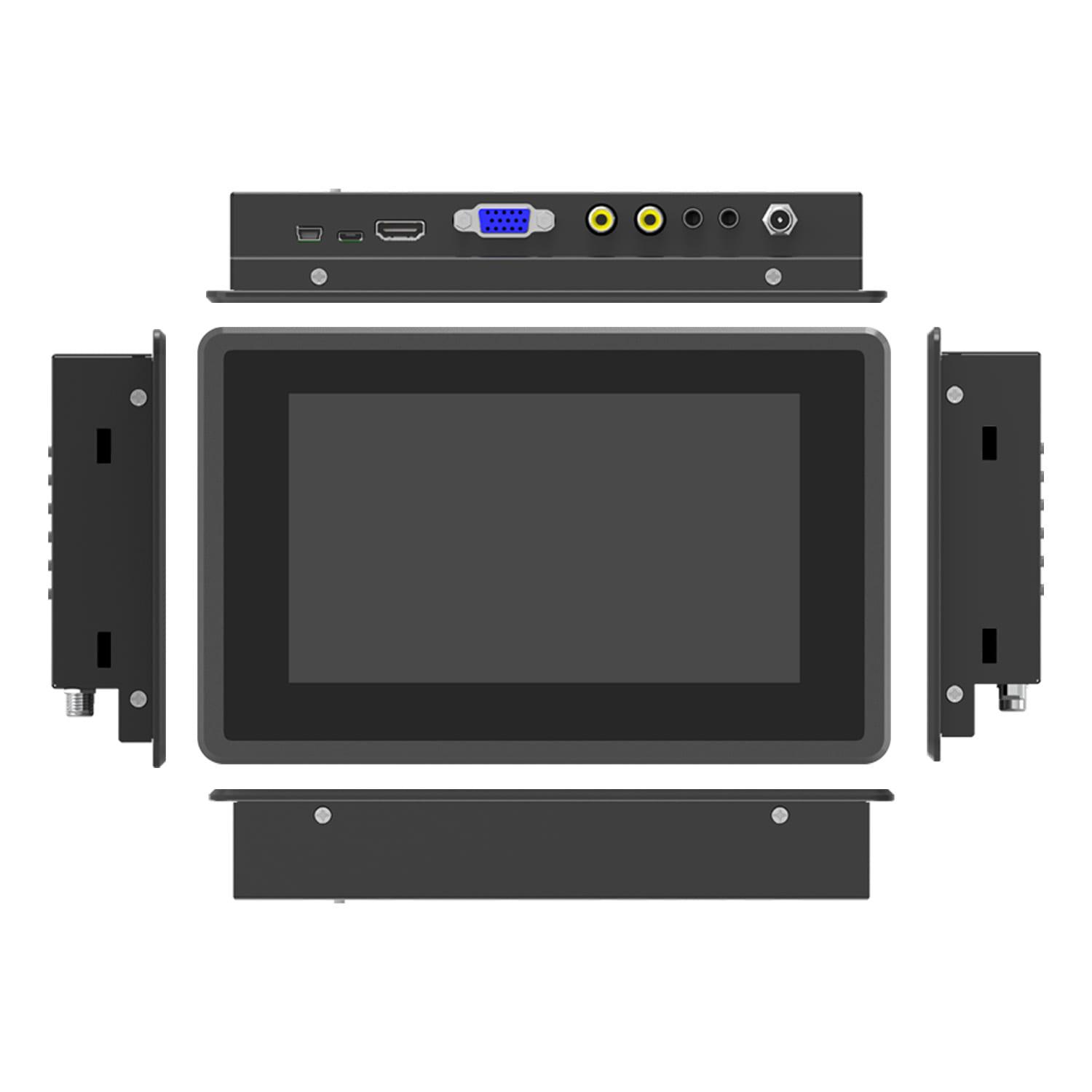

Product Image

Ultra brightness monitor
Ultra brightness monitor

Industrial monitor
Industrial monitor

touch HDMI monitor
touch HDMI monitor

metal case industrial monitor
metal case industrial monitor

industrial touch monitor
industrial touch monitor
