LILLIPUT PC-2150 21.5 Inch Industrial Panel Pc Quad Core Waterproof Win10 Panel

HMI computer
  • HMI computer
  • Touch panel pc
  • commercial panel pc
  • WINDOWS industrial pc
  • industrial panel pc
  • panel pc for medical
Model No.︰PC-2150
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 18 Related Items
Prev678910Next

Product Description

Description:

Lilliput 21.5 inch touch screen panel pc comes with IP65 and 1000nits for the screen panel, it can complete protection against particles and water.And the high brightness screen panel make it suitable for outdoor conditions. The panel PC supports windows 7 /10 and Linux Ubantu systems, and with rich interface which can meet different fields. For instance, Intelligent industrial control system, electric power industry, electronic assembly line, numerical control machine, coal mine acquisition, large warehouse management, manufacturing, retail, medical device, HMI, catering and entertainment, port terminal, shopping mall, etc.



Features:

· 21.5 inch LED screen with 1920x1080 resolution
· 10 points Capacitive Touch
· 1000cd/m² brightness sunlight readable
· IP65 rating front panel
· Intel@Celeron J1900 Quad Core Processor
· RAM 4GB + ROM 120GB, 8GB are optional
· Windows 7/10, Linux Ubuntu
· Interfaces: Wifi, BT, USB, RS232, LAN, HDMI, VGA, SATA slot, mSATA slot, mPCle, DC12V
· Metal housing, VESA 75/100mm mounting
· Weight: 7.25kg



Applications:

Rich resource working with powerful Intel CPU processor, which applied in different fields. For instance, Intelligent industrial control system, electric power industry, electronic assembly line, numerical control machine, coal mine acquisition, large warehouse management, manufacturing, retail, medical device, HMI, catering and entertainment, port terminal, shopping mall, etc.

Specification:


CPU Integrated Intel® Celeron J1900 / 2.0GHz quad core processor
GPU Integrated Intel® HD Graphics
Operating System Windows 7 / 10, Linux Ubuntu (optional)
RAM 4GB DDR3, up to 8GB
Storage 120GB mSATA (SATA2.0 or 2.5 inch HDD optional)
LCD 21.5″ FHD (1920 × 1080), 1000cd/m2  higher brightness, Sunlight readable
Touchscreen 10 point multi touch capacitive touchscreen supporting glove and rain mode
Bluetooth 4.0 BLE
WLAN IEEE 802.11 a / b / g / n; 2.4GHz
Sound Onboard  ALC662 6-channel high fidelity audio controller, support MIC/Line-out, amplifier
2 × Amplifier proposed using 2Ω 5W speakers
Expansion 1 × Mini-PCIE
Interfaces 1 × HDMI
1 × VGA
3 × USB 2.0
1 × USB 3.0
1 × LAN
2 × RS232 serial ports
Watch dog Windows 7/Windows 10/Linux
Power DC 12V
Power consumption ≤ 40W
Physical Dimensions 556 x 344.5 x 53 mm
Weight 7.25kg
Environment Dust resistance test:  IP6x (front panel)
Water resistance test: IPx5 (front panel)
Operating temperature:  -10°C ~ 60°C (14°F ~ 140°F)

Storage temperature:  -20°C ~ 70°C  (-4°F ~ 158°F)

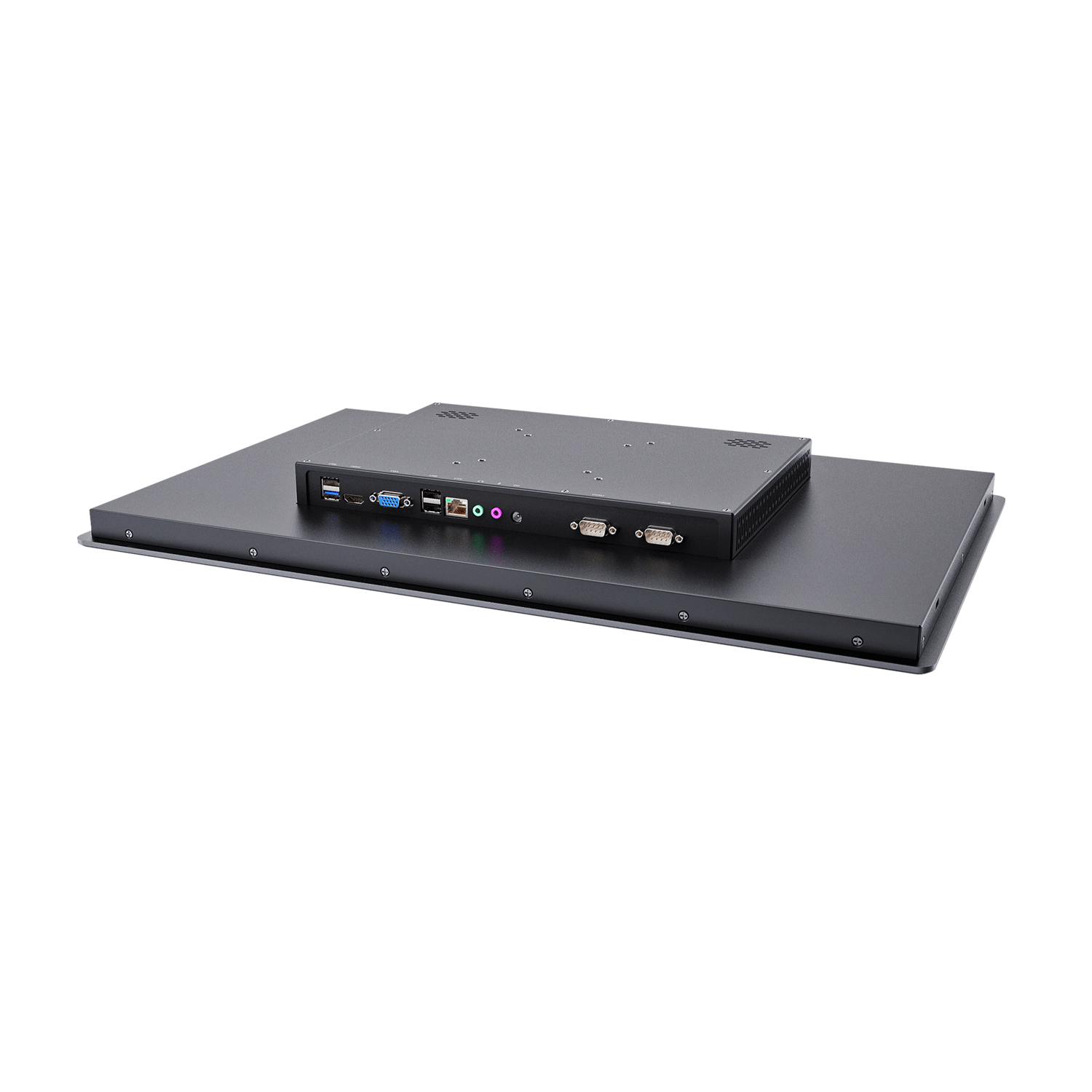

Product Image

HMI computer
HMI computer

Touch panel pc
Touch panel pc

commercial panel pc
commercial panel pc

WINDOWS industrial pc
WINDOWS industrial pc

industrial panel pc
industrial panel pc

panel pc for medical
panel pc for medical
