AVMATRIX HDMI to 3G-SDI Pocket-size broadcast Converter

  • AVMATRIX HDMI to 3G-SDI Pocket-size broadcast Converter
  • AVMATRIX HDMI to 3G-SDI Pocket-size broadcast Converter
  • AVMATRIX HDMI to 3G-SDI Pocket-size broadcast Converter
  • AVMATRIX HDMI to 3G-SDI Pocket-size broadcast Converter
Model No.︰Mini SC1221
Brand Name︰AVMATRIX
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 2 Related Items
12Next

Product Description

Input: HDMI×1, Output: 3G-SDI×2

Pass through conversion

Input signal automatic detection and configuration

LED indicators for power and signal lock

USB powered supports

Detachable bracket design for wall mounting



Functions 1: Born for Broadcast

Although it's a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats are supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7×24h uninterrupted working without any lag or delay.



Functions 2: Powered Anywhere

Featured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 5,000mAh power bank can supply a more than 24-hour uninterrupted working time.



Functions 3: Pocket Size and Easy to Mount

Miniature design makes it portable for indoors and outdoors. It's possible to put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.



Functions 4: Easy Control over DIP Switches

Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.

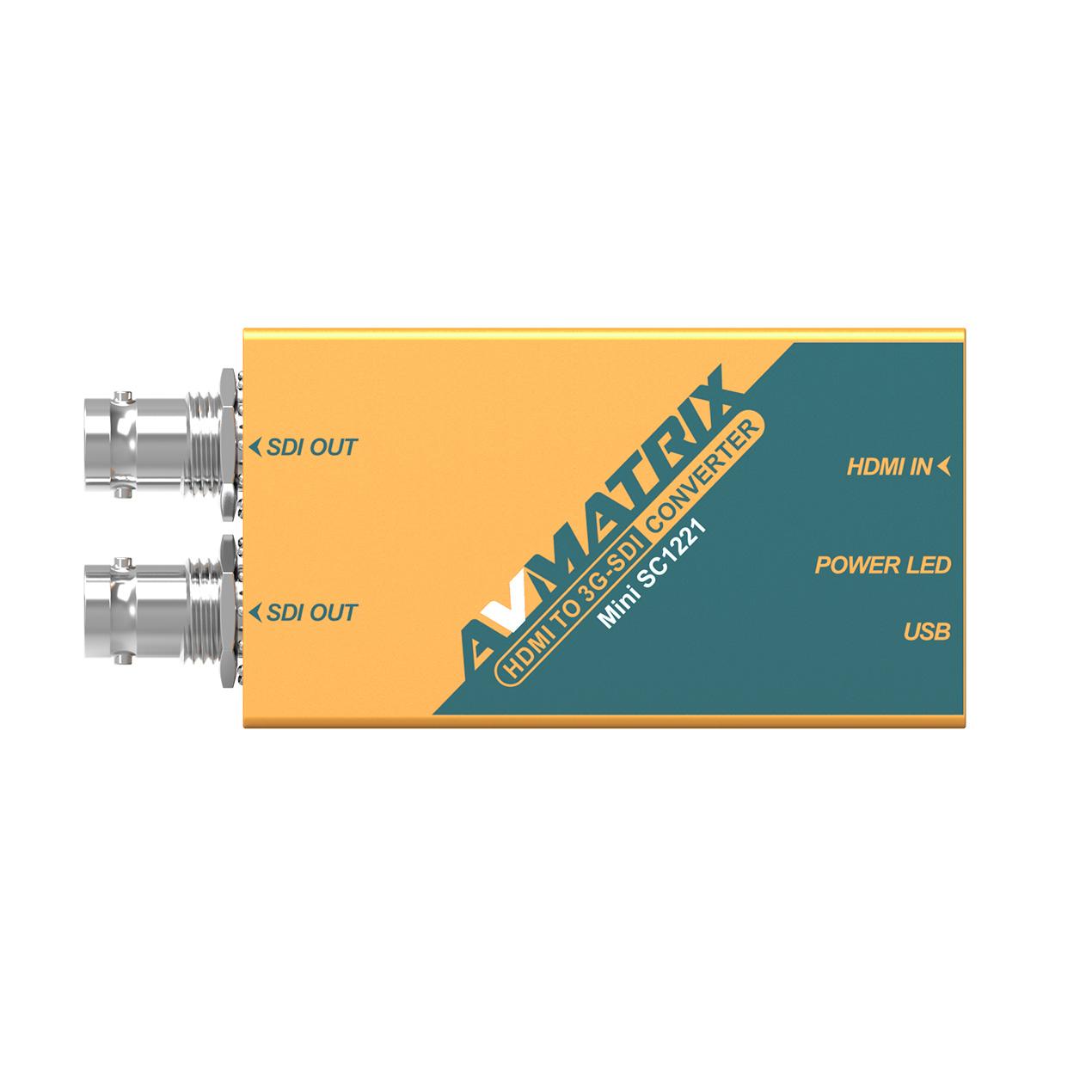

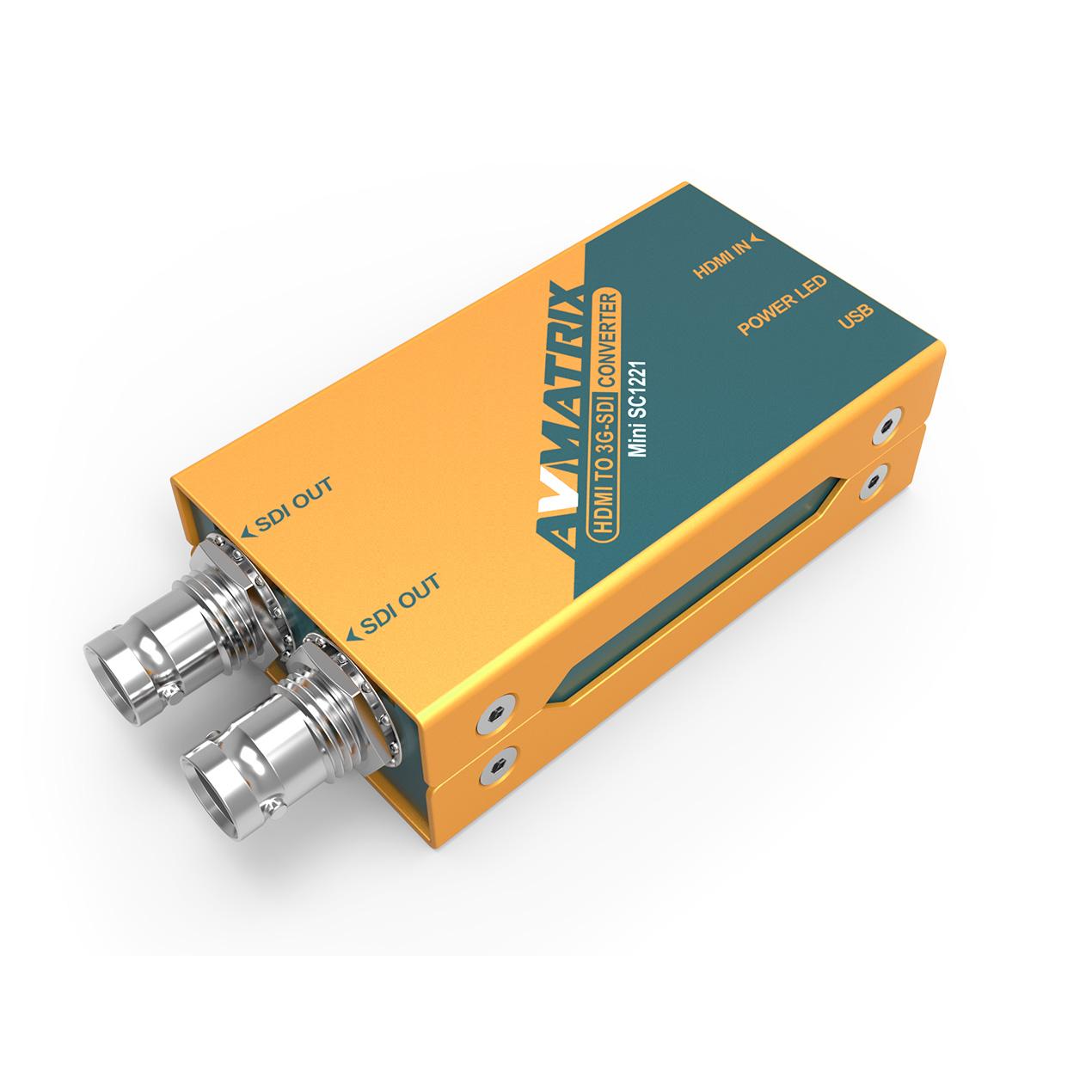

Product Image
