20km transmission distance
Support 3Gbit Level A and Level B (all formats)
SFP/ LC Fiber transmitter & receiver
SDI equalization and re-clocking

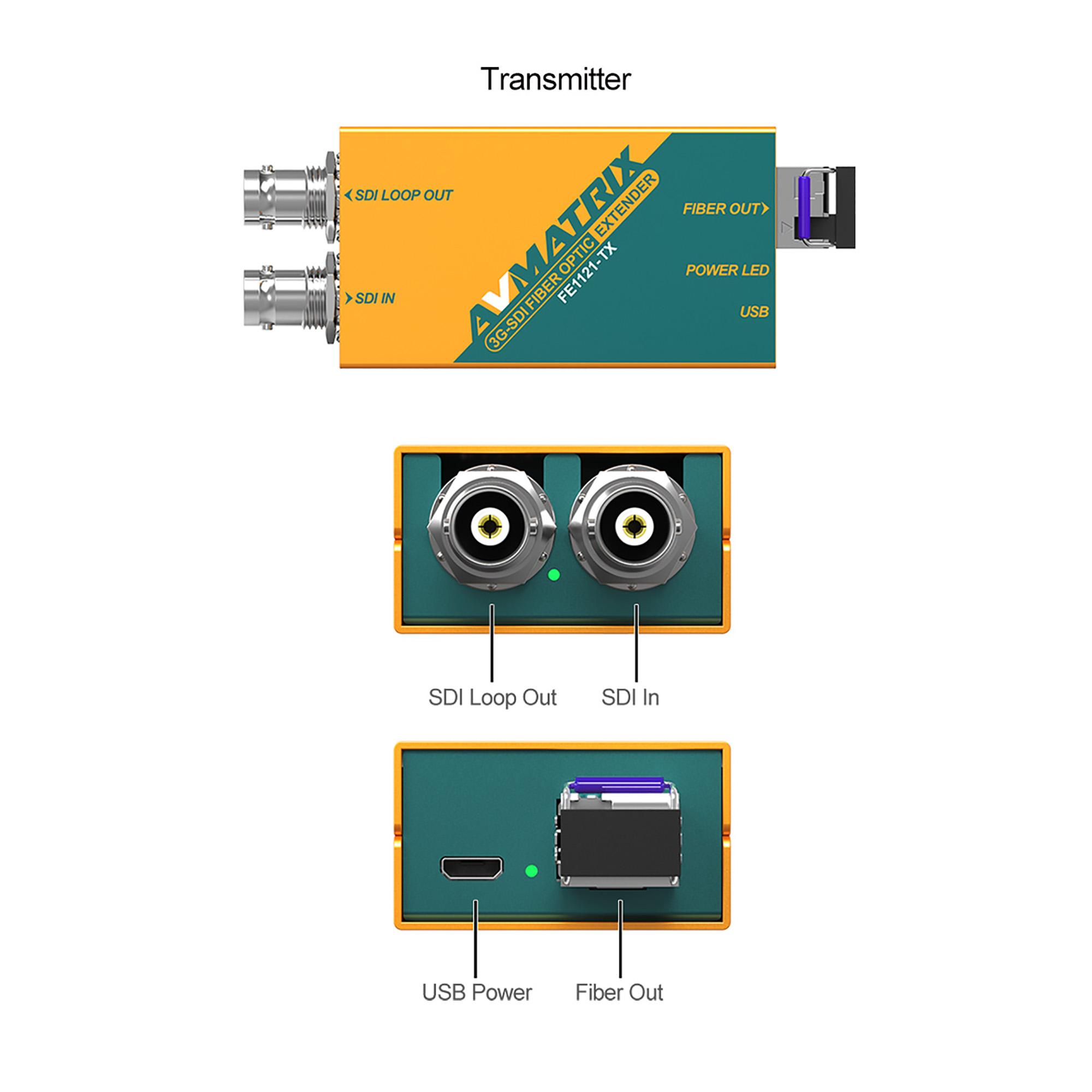

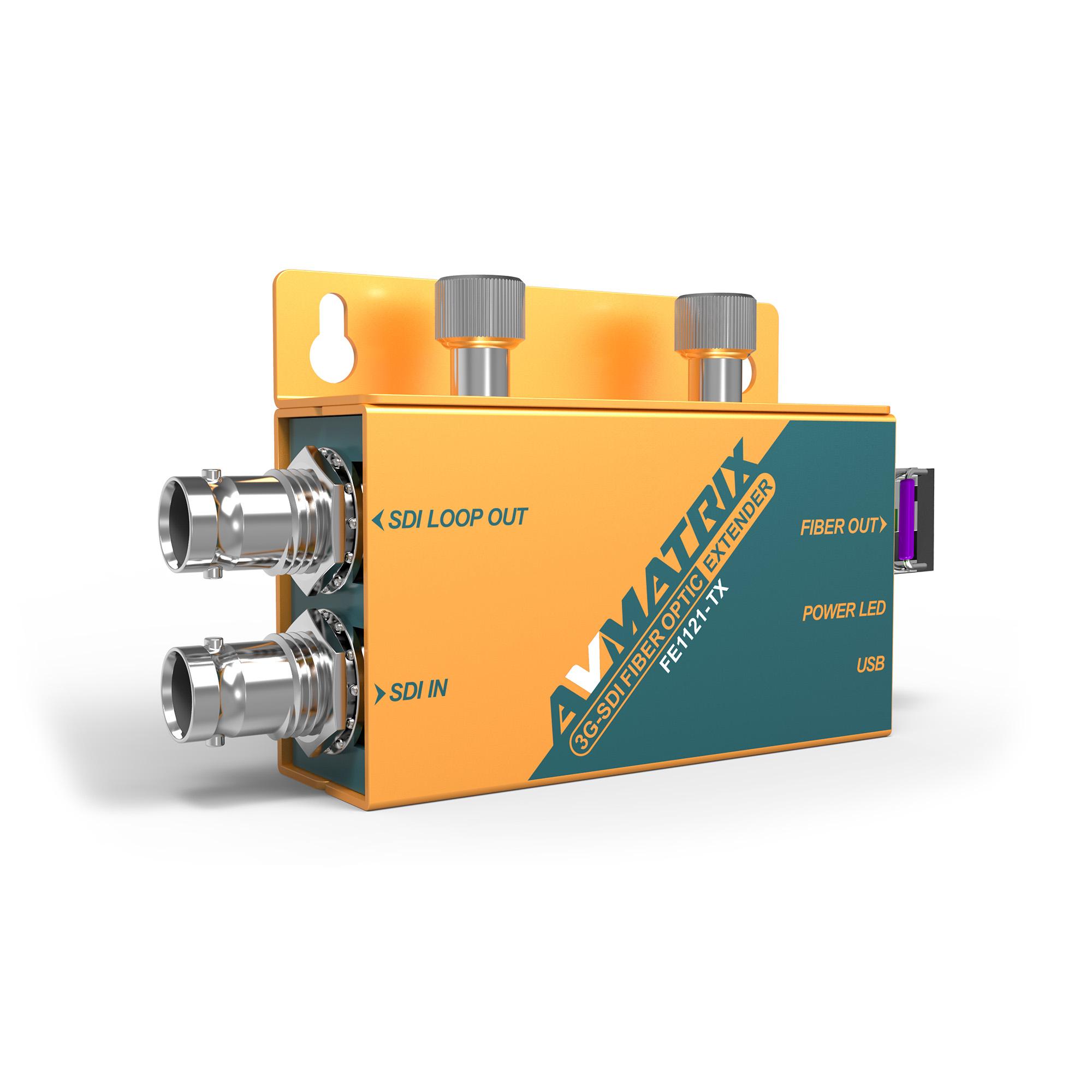

3G-SDI input & loopout on transmitter

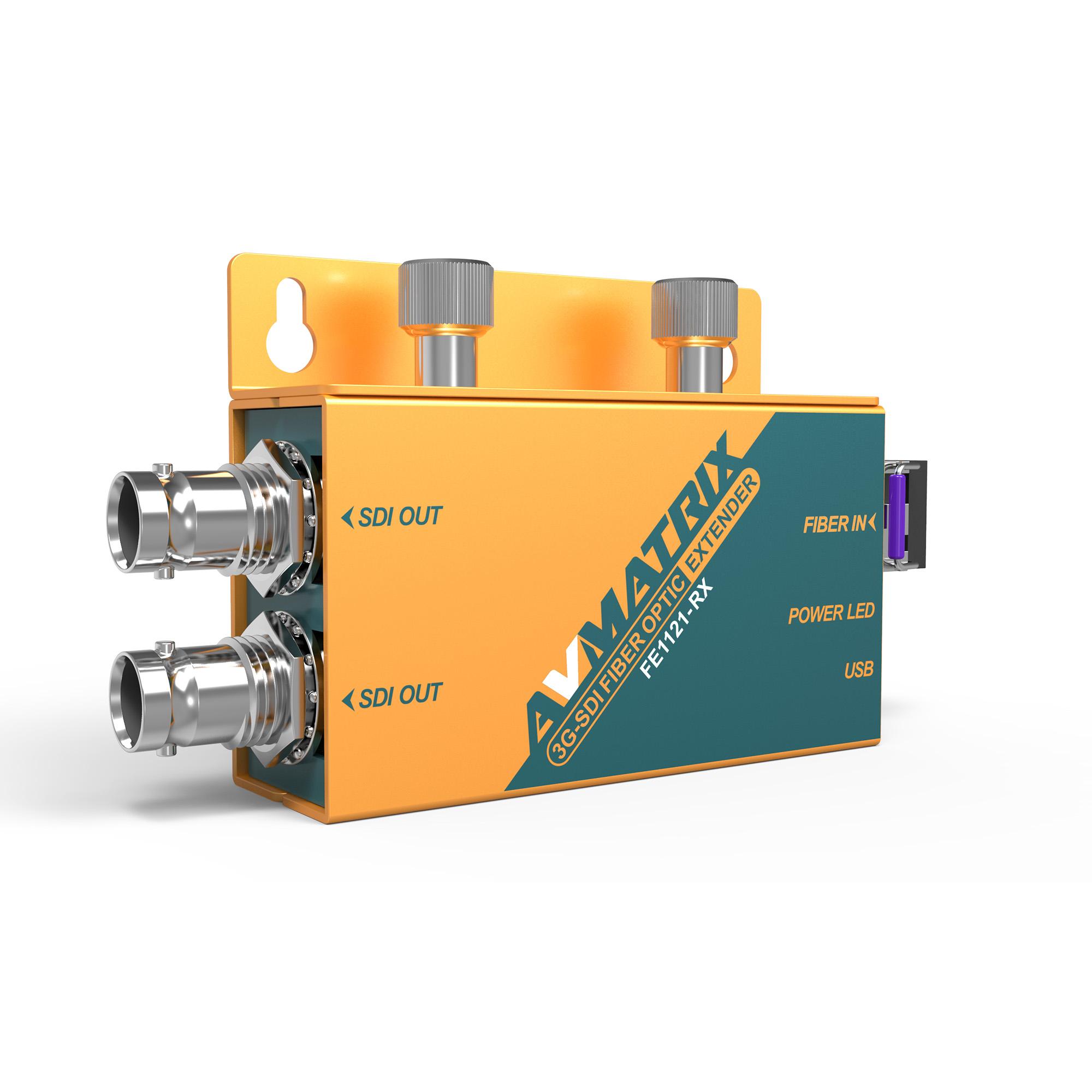

Dual 3G-SDI outputs on receiver
SDI input automatic switching SD, HD & 3G
USB power supply

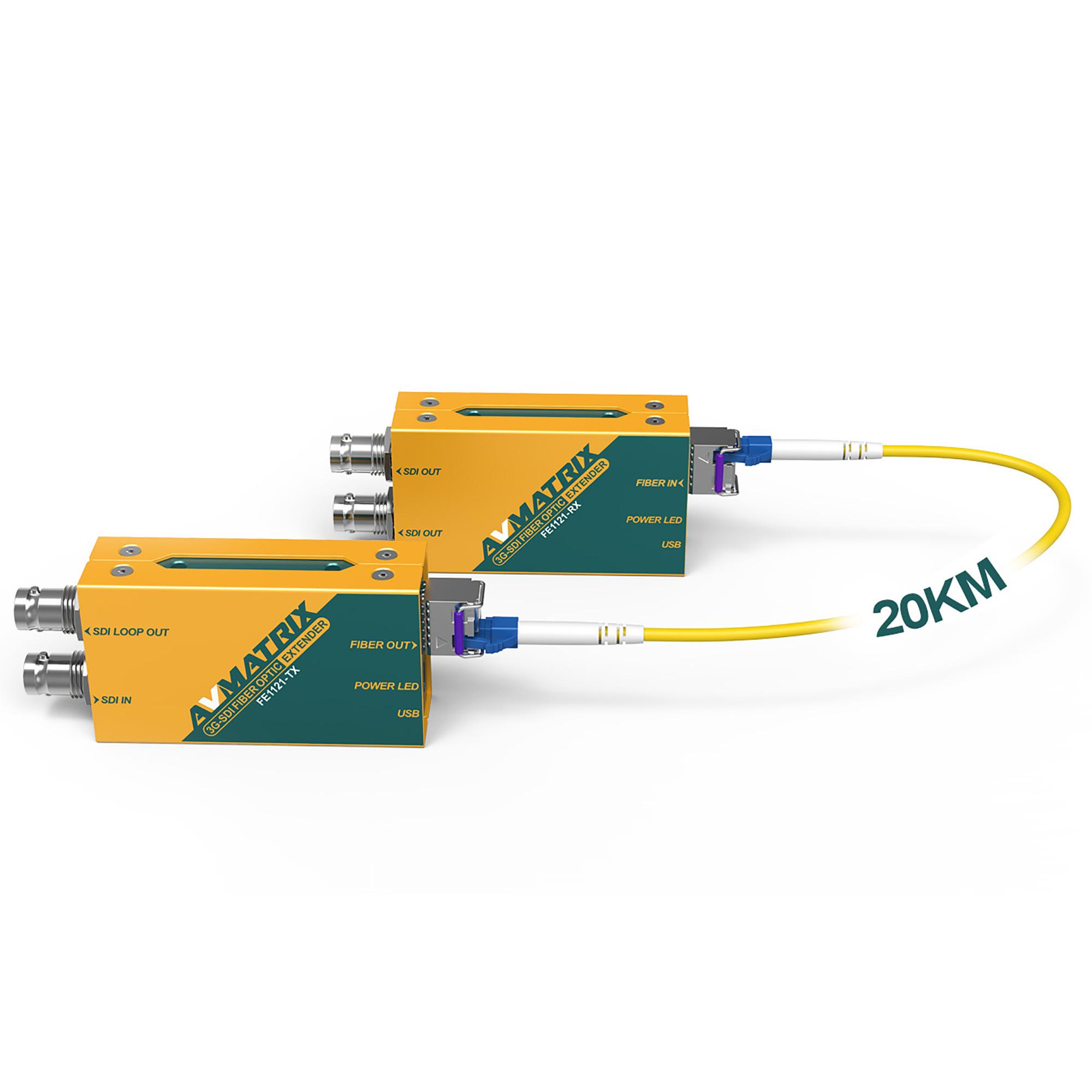

Function 1: 20km Transmission
The 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting 1310nm wavelength single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p (Max. bandwidth: 3Gbps) with audio and metadata.
Function 2: SFP module with LC connector
The fiber extender uses hot-pluggable SFP design with LC connector. You can replace the module anytime and anywhere. It is designed to transmit data rates from 50Mbps to 3Gbps, compliant with SFF-8472 and SMPTE 297M-2006.
Function 3: SDI Equalization & Re-clocking
Equalized on the SDI input and reclocking on the SDI outputs to maximize performance up to 120m for 3G and 140m for HD-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 3G level A & level B formats.
