5.5" FHD SDI Monitor - Q5

5.5'' Field Monitor
  • 5.5   Field Monitor
  • 5.5   FHD SDI MONITOR
  • 5.5   Camera-top Monitor
  • 5.5   FHD MONITOR
Model No.︰Q5
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 39 Related Items
Prev1819202122Next

Product Description

Features:

1920x1080, Full HD resolution,
450cd/m² high brightness,
1000:1 high contrast,
Waveform PIP mode,
Column (YRGB peak), time code,
SDI and HDMI cross conversion,
Metal housing, 20mm slim.

Parameters:

DISPLAY

Display Screen 5.5" IPS 8bits
Physical Resolution 1920×1080 (401ppi)
Aspect Ratio 16:9
Brightness 450cd/m2
Contrast 1000:1
Viewing Angle 160°/160°(H/V)

INPUT

3G-SDI 1
HDMI 1

OUTPUT

3G-SDI 1
HDMI 1

AUDIO

Speaker 1
Ear Phone Slot 1

SDI FORMAT

SMPTE-125M 480i(59.94)
1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-372M 720p(60/59.94/50)
1080i(29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M-AB 1080p(60/59.94/50)
-Level A & Level B 720p(60/59.94/50/30/29.97/25/24/23.98)
Level B 2x 1080i(60/59.94/50)
ITU-R BT.656 576i(50)

HDMI FORMAT

Full HD ~ SD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i

POWER

Current 1A
Input Voltage DC 7-24V
Battery Plate F970 / QM91D / DU21 / LP-E6
Power Consumption ≤12W

ENVIRONMENT

Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃

DIMENSION

Dimension(LWD) 154.5x90x20mm / 157.5x93x23mm (with case)
Weight

320g / 340g (with case)



Product Image

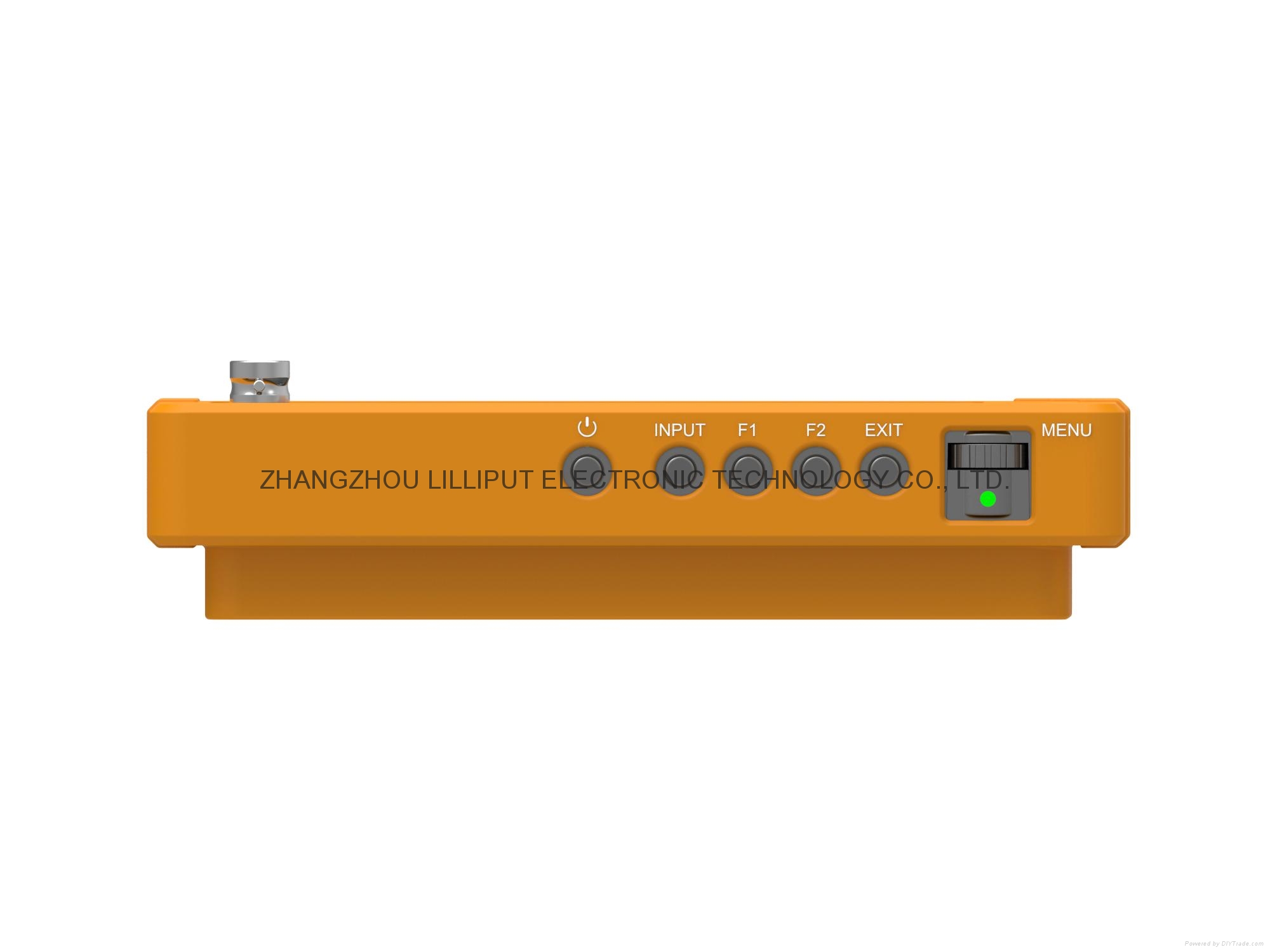

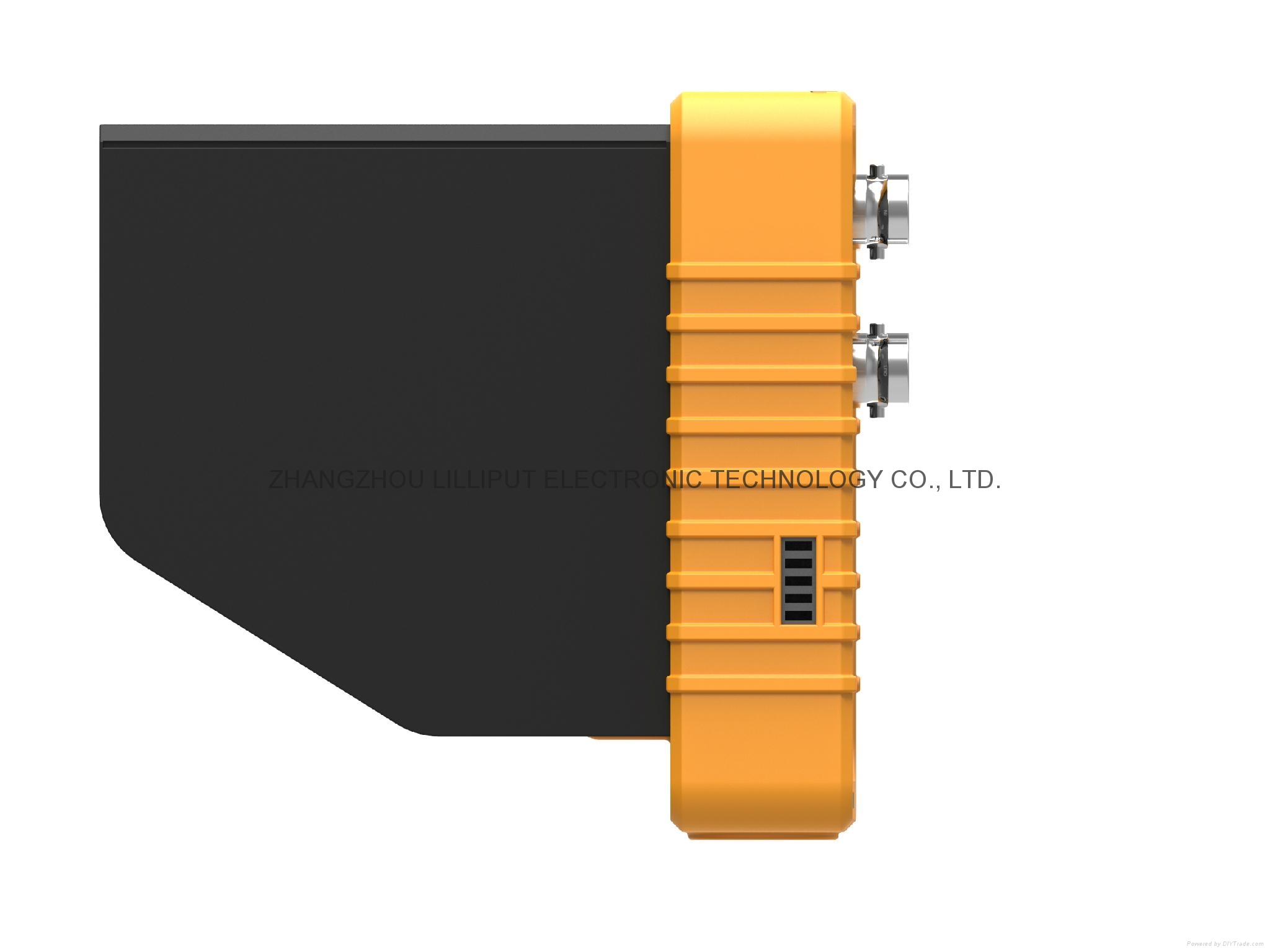

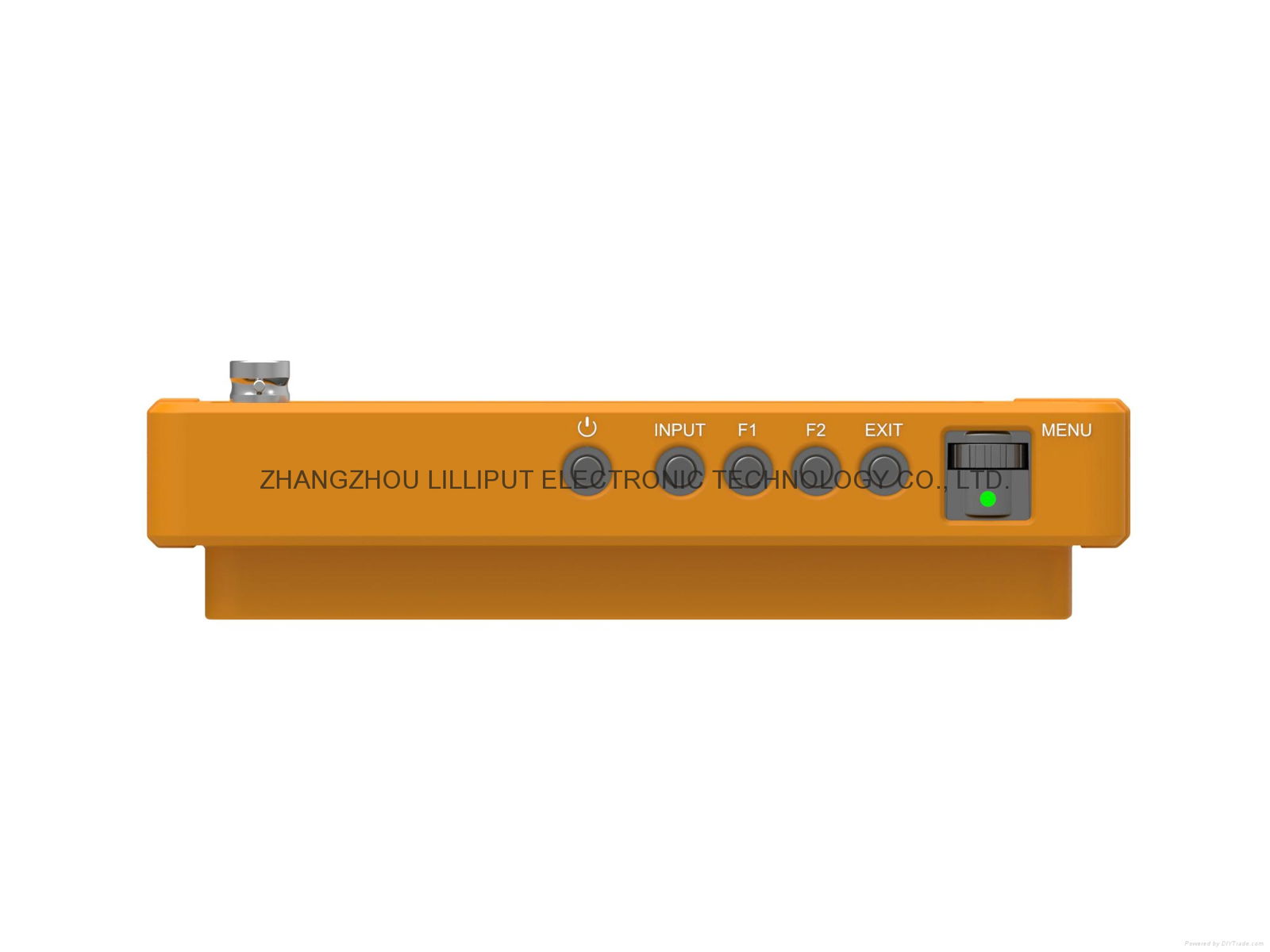

5.5'' Field Monitor
5.5'' Field Monitor

5.5'' FHD SDI MONITOR
5.5'' FHD SDI MONITOR

5.5'' Camera-top Monitor
5.5'' Camera-top Monitor

5.5'' FHD MONITOR
5.5'' FHD MONITOR
