7" FPV Monitor, Channel auto searching (339DW)

  • 7" FPV Monitor, Channel auto searching  (339DW)
  • 7" FPV Monitor, Channel auto searching  (339DW)
  • 7" FPV Monitor, Channel auto searching  (339DW)
Model No.︰339DW
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 3 Related Items
123Next

Product Description

Specific Monitor by LILLIPUT for Flying Camera System.
Application for Aerial & Outdoor Photography.
Strongly recommend for aerial enthusiast & professional photographer.

339/DW (with dual 5.8Ghz receivers, which cover 4 bands and total 32 channels, Channel auto searching)
339/W (with single 5.8Ghz receiver, which cover 4 bands and total 32 channels, Channel auto searching)


Features:
Excellent Display & Design

it features attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast that providing excellent viewing experience.



Channel Auto Searching

It supports 32-channel totally, press "AUTO" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.




PiP Mode(339/DW only)

339/DW owns dual antennas, which can receive two different video signal channels, and technically overlayed the video signals directly on the same monitor. Also multiple Picture-in-Picture(PiP) modes can be selected.



4-hour Timer & Alert Indicator

Creatively integrated timer function to control the flight time and avoid of flight accident when operating the UAV. Timer supports up to 4-hour countdown, and it will alert when 1 minute left.



Built-in Battery & Battery Level

Built-in 2600mAh battery, support up to 3-4 hours working time, and providing battery level indicator.



Wireless signal sensitivity indicator

Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.

5.8GHz Wireless AV Receiver

  • Built-in AV receiver support PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
  • Simulation of composite video AV inputs, aerial camera connection.
  • 5.8Ghz frequency 4 Bands and total 32 channels.
  • 100 to 2000 meters wireless distance.
  • Built-in 2600mAh high capacity rechargeable battery, make power cables free.
  • Snow screen, no more "blue" screen.

Wireless Receiver Channel (Mhz)



CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

Band1

5865

5845

5825

5805

5785

5765

5745

5725

Band2

5733

5752

5771

5790

5809

5828

5847

5866

Band3

5705

5685

5665

5645

5885

5905

5925

5945

Band4

5740

5760

5780

5800

5820

5840

5860

5880


339/DW TIPS:
Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.
For example:
(ANT1) 5800MHz - (ANT2) 5790MHz = 10MHz < 20MHz
(ANT1) 5828MHz - (ANT2) 5790MHz = 38MHz > 20MHz ×



Specification:

DISPLAY

Panel 7" IPS, LED backlit
Physical Resolution 1280×800
Aspect Ratio 16:9
Brightness 400cd/㎡
Contrast 800:1
Viewing Angle 178°/178°(H/V)

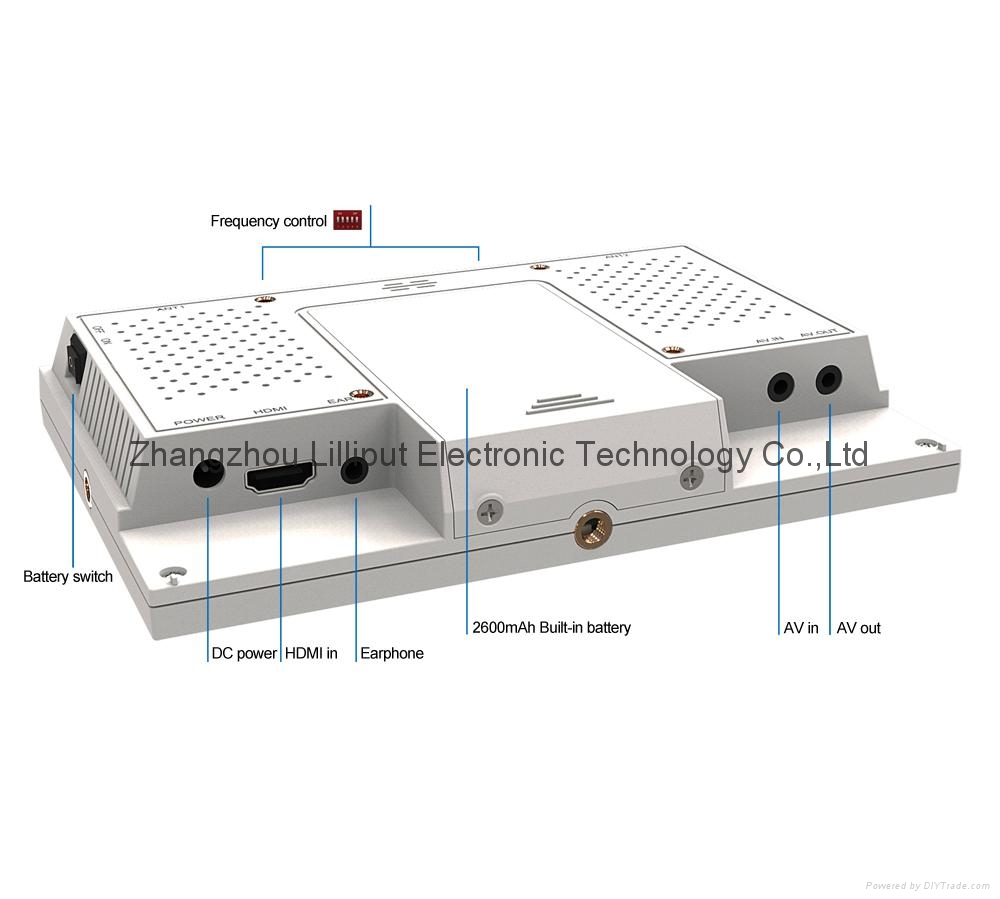

INPUT

Wireless 5.8GHz AV 2 (339/DW), 1 (339/W)
HDMI 1
AV 1

OUTPUT

AV 1

AUDIO

Speaker 1
Earphone 1

POWER

Current 1300mA
Input Voltage DC 7-24V
Battery Built-in 2600mAh battery
Battery Plate (optional) V-mount / Anton Bauer mount /
F970 / QM91D / DU21 / LP-E6
Power Consumption ≤18W

ENVIRONMENT

Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃

DIMENSION

Dimension(LWD) 185×126×30 mm
Color White/Black
Weight 385g
