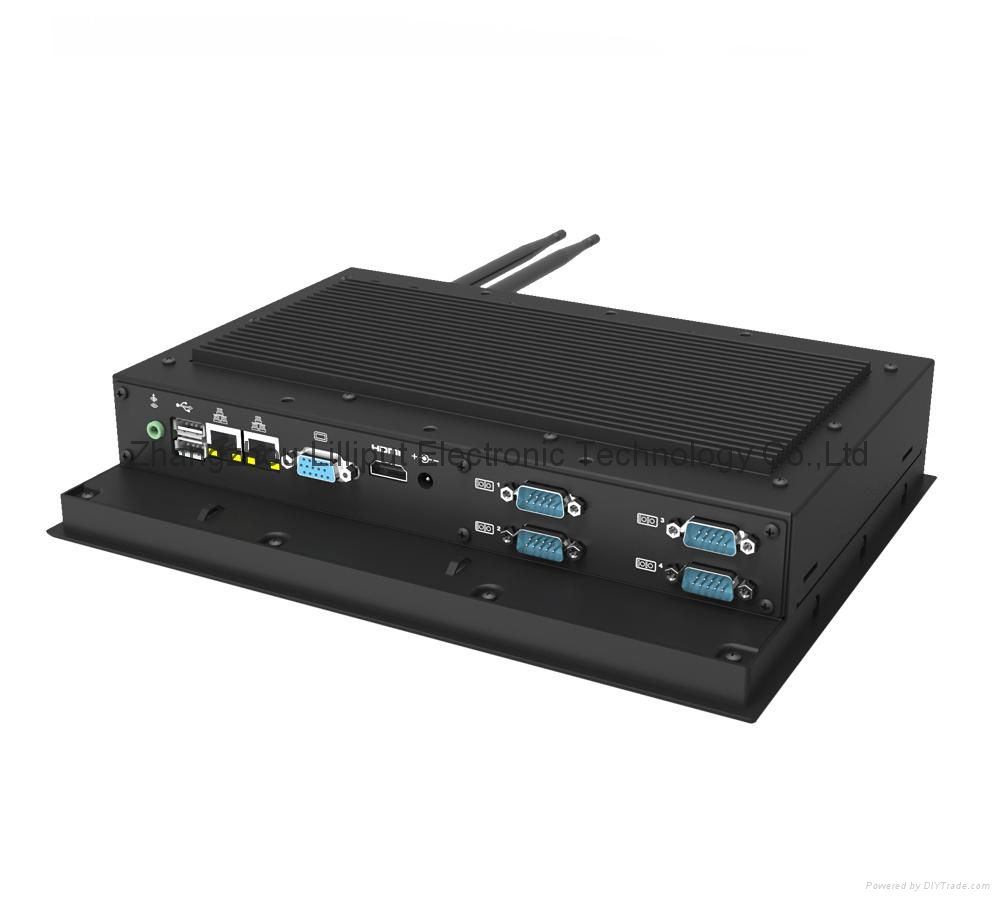

10.4" AIO Industrial Computer PC-1041

Touch panel PC
  • Touch panel PC
  • Industrial pc
  • HMI,POS system
  • All in one PC
Model No.︰PC-1041
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 18 Related Items
Prev1011121314Next

Product Description

Features:
Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.

Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.

It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.

  • Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM;
  • 10.4” LED display with resistive touch;
  • RS232 × 4, COM 2 supports RS485/232/422;
  • Wide voltage 6-32V for optional;
  • Metal housing design;
  • HDMI & VGA output;
  • Fanless cooling system;
  • Dual Ethernet port;



Multiple mount methods:


Mount from the front of wall, fixed with lock sheet and srews. It’s more convenient for customers to control & maintain the device behind the wall.



Screwed with Fixed bracket, It’s much more easily to be hung on the wall, also available for 75mm / 100mm VESA standard mount.


Optional:
GPS, 3G, Bluetooth, Wi-Fi 802.11 b/g/n.




Applications:


  • Information Display
  • Digital Signage
  • Advertising Terminal
  • Service Kiosk
  • Industrial Control
  • Equipment Matching
  • In-Home Control Device
  • Digital Signage
  • Security & Surveillance
  • General Communication
  • Distance Data Acquisition
  • Visual Communication
  • Tele-education
  • Internet Surfing
  • Entertainment & Multimedia Player

Parameters:

Display Screen 10.4“ LED backlit
Resolution 800×600 (1,440,000) pixels
Touch Panel 5-wire resistive
Brightness 250cd/㎡
Aspect Ratio 4:3
Contrast Ratio 500:1
Viewing Angle 140° / 110°(H/V)
OS Windows 7/8, Windows Embedded 7, Linux
CPU Intel N2800, dual-core 1.86GHz
Memory 2G DDR3, optional: 4GB
Storage PCIe mSATA SSD 32G, support up to 128G (Optional: 2.5" SATA HDD)
Chipset Intel NM10 chipset
L2 Cache 1024KB
Video Card built-in display memory
Sound Card 4 channels
Expansion Built-in Mini PCIe×1, optional for 3G / WIFI
Interface RS232×4 (COM2 support RS232/422/485), HDMI out, VGA out, Audio out,
DC 12V in, USB2.0×4, LAN×2, SIM slot, Antenna,
Input Voltage DC 12V, optional: DC 6-32V wide voltage
Current 1.8A
Power Consumption ≤22W
Speaker 1W
Working Temperature 0~50ºC
Storage Temperature -10~65ºC
Dimension(LWD) 280 × 210 × 58.8 mm
Weight 2190g



Accessories:

  • Power adapter

  • VESA screws

  • Fixed bracket

  • Driver disk

  • Operation manual

  • Wide voltage box (optional)

  • 2.5 inch HDD (optional)

Product Image

Touch panel PC
Touch panel PC

Industrial pc
Industrial pc

HMI,POS system
HMI,POS system

All in one PC
All in one PC
