10.1'' 3G-SDI monitor

HDMI Monitor
  • HDMI Monitor
  • SDI monitor
  • 10.1   SDI monitor
Model No.︰FA1014/S
Brand Name︰LILLIPUT
Country of Origin︰-
Unit Price︰-
Minimum Order︰-
Share on:

 Total 31 Related Items
Prev1718192021Next

Product Description

Features:

  • High contrast: 800:1,
  • High brightness: 350cd/m².
  • Lux auto brightness,
  • Integrated dustproof front panel,
  • I/O control interface,


Wide Viewing Angles (IPS Panel)

170° horizontal & 170° vertical wide viewing angles, it's available for people viewing from different angles with the same visual effect.


Bigger size, larger view.

10.1" IPS display panel with 1280×800 native resolution, twice viewing area than 7” display.


Lux Auto Brightness (optional)
A light sensor designed to detect ambient lighting conditions adjusts the panel's brightness automatically, which makes viewing more conveniently & saves more power.



under hard light under weak light

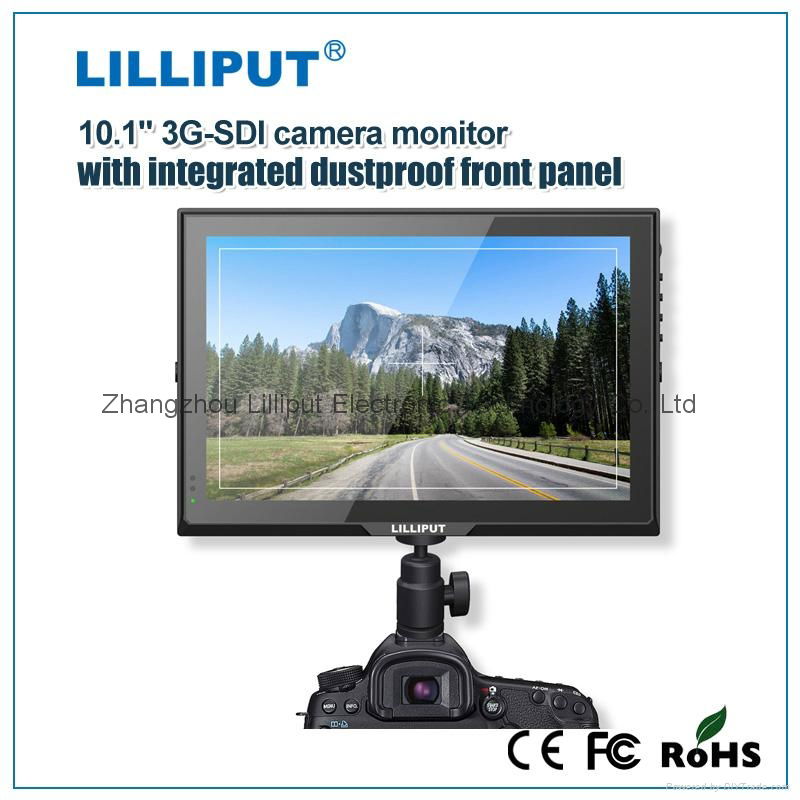

Integrated dustproof front panel

FA1014/S front panel adopts intergrated front panel, which can prevent the screen from mild droplets & dust. It also available for outdoor environment.


I/O control interface

The interface has functions such as connecting with reverse trigger line in car reversing system, and control computer host to switch on/off, etc. Functions also can be customized to meet different demands.



car reversing trigger reversing image

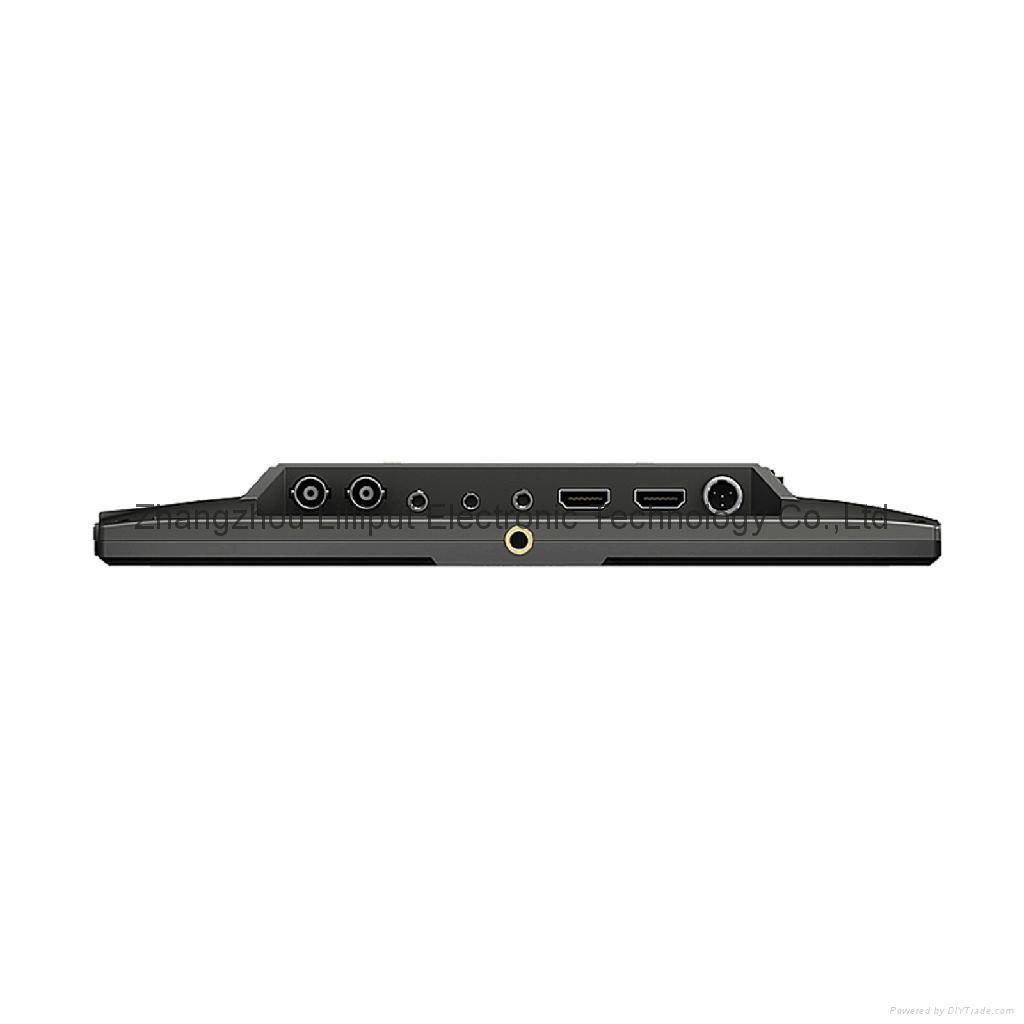

Abundant interfaces: 3G-SDI, HDMI, VGA & AV input

FA1014/S includes 3G-SDI connection to meet a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required.

Parameter

Display Screen 10.1" LED IPS
Resolution 1280 × 800, suport up to 1920 x 1080
Aspect Ratio 16:9
Touch Panel Capacitive Touch (optional)
Contrast Ratio 800:1
Brightness 350cd/㎡
Viewing Angle 170°/170° (H/V)
Input Signal 3G-SDI, HDMI, VGA, AV, DVI(optional)
I/O port 1
Speaker 1
Input Voltage DC 7-24V
Battery External (optional)
Current 800mA
Power Consumption ≤10W
Audio Output ≤1W
Operating Temperature 0℃~50℃
Storage Temperature -20℃~60℃
Dimension(LWD) 250×170×32.3 mm
Weight 560g

Accessories:

8 Keys remote control
HDMI A/C cable
Audio output cable
Mini XLR
VESA battery bracket
Composite cable
12V DC adapter
Gimbal bracket
Manual
V-mount battery plate (optional)
Anton Mount Plate (optional)
Li-ion battery (optional)
HDMI connect DVI cable (optional)
VESA folding bracket(optional)
VGA cable (optional)

Product Image

HDMI Monitor
HDMI Monitor

SDI monitor
SDI monitor

10.1'' SDI monitor
10.1'' SDI monitor
