3RU Rack Monitor

Rack mount monitor
  • Rack mount monitor
  • broadcast monitor
  • SDI monitor
Model No.︰RM-7028S
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 31 Related Items
Prev1920212223Next

Product Description

Dual 7" 3RU Rack Monitors With dual 7” IPS screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor.
Perfect 3G-SDI Monitoring with Broadcast Quality for Live Events & Shows

Intelligent SDI Monitoring
Lilliput 7" 3RU rack monitors are the best solution for high quality SDI monitoring! They have a various of use for broadcast, on-site monitoring and live broadcast van, etc! As well as setup a video wall of rack monitors in control room and see all the scenes.
A rack for a customized monitoring solution also can be supported for viewing images displays from different angles.

Perfect Dual Monitoring
Because of better filtering and scaling advantages, Lilliput's 3RU rack monitors are really suitable for broadcast quality monitoring system. With high quality SD, HD & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently. Highly integrated Tally port and Tally description, which are ideal for large broadcast systems.

Smart Ethernet Control
Using laptop, Mac or PC to set and adjust each monitor easily with relevant softwares via Ethernet network.

Excellent Display & Design
Lilliput's dual 7" rack monitors feature two attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast, and faster response time; that providing excellent viewing experience. Metal & thin housing design is also welcomed by live events and shows.

Parameters:

DISPLAY

Panel Dual 7" IPS
Physical Resolution 1280×800, support up to 1920×1080
Aspect Ratio 16:9
Brightness 400cd/㎡
Contrast 800:1
Viewing Angle 178°/178°(H/V)

INPUT

3G-SDI 1×2
HDMI 1×2
YPbPr 3(BNC)×2
Composite 1×2
TALLY 1×2
LAN 1
USB 2.0 1(mini)

OUTPUT

3G-SDI 1×2
HDMI 1×2
YPbPr 3(BNC)×2
Composite 1×2

POWER

Current 1500mA
Input Voltage DC 7-24V
Power Consumption ≤18W

ENVIRONMENT

Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃

DIMENSION

Dimension(LWD) 482.5×133.5×25.3mm
Weight 2885g

Accessories:

  • TALLY connector

  • 12V DC adapter

  • Manual

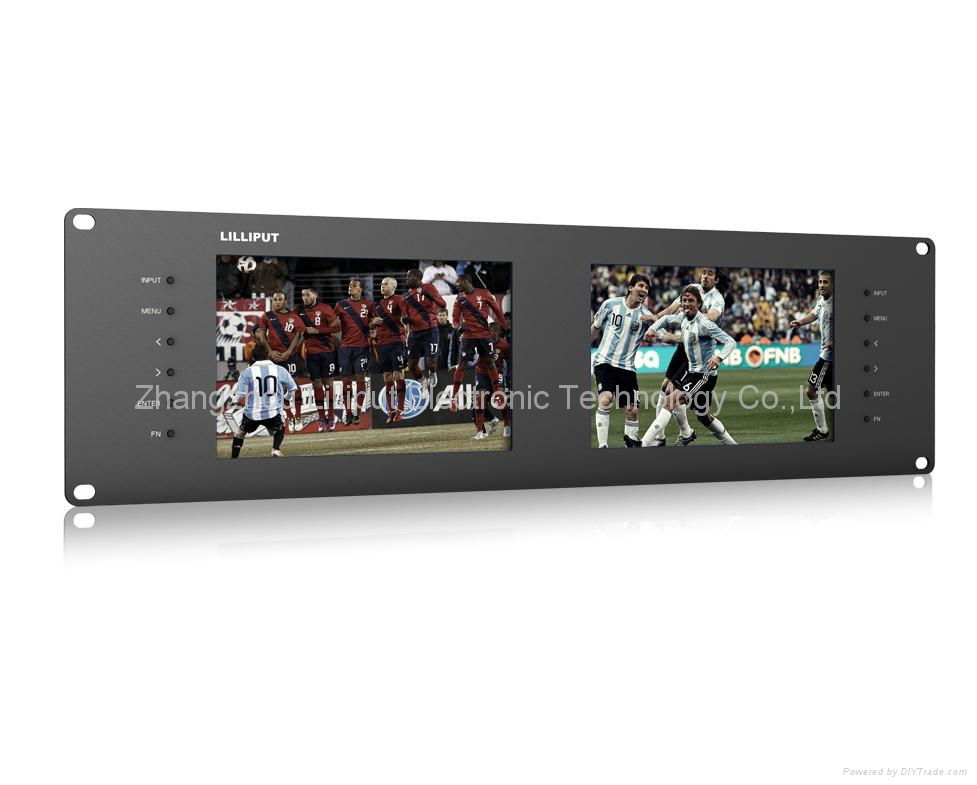

Product Image

Rack mount monitor
Rack mount monitor

broadcast monitor
broadcast monitor

SDI monitor
SDI monitor
