Lilliput 7" IPS panel 1280*800,Professional Broadcast Monitor (663/S)

Field Monitor
  • Field Monitor
  • Camera monitor
  • lcd monitor
  • SDI MONITOR
Model No.︰663/P, 663/S
Brand Name︰LILLIPUT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 50 Related Items
Prev4142434445Next

Product Description

Lilliput 7" Professional Broadcast Monitor & LCD Field Monitor with 1280× 800 IPS Panel, 3G-SDI / HDMI / YPbPr / AV interfaces for DSLR & Full HD Camcorder.

663 (HDMI input)
663/P (HDMI input, Advanced Functions)
663/S (3G-SDI input & output, HDMI input & output, Advanced Functions)
663/O (HDMI input & output)
663/O/P (HDMI input & output, Advanced Functions)

IPS panel wide viewing angles,
High resolution: 1280× 800,
High brightness: 400CD/,
High contrast: 800: 1,
Faster response time,
Wide voltage: DC 7-24V,
TALLY interface with indicating light,
Firm & portable design,
POP-UP shortcut menu,
Suitcase make monitor watertight, crushproof and dust proof.

Features:

HDMI output

Advanced Functions Upgrade!

Providing advanced camera auxiliary functions. Color/RGB Histogram, Waveform, Vector Scope, Audio Level Meter,Peaking, False Color, Histogram & Exposure, etc., are major concerns with camcorder users. Lilliput's field monitors are great at displaying accurate images, 663/S2 makes photoing & recording even easier with its functionality.

7 inch 16:9 LCD

7 inch monitor with wide screen aspect ratio

The Lilliput 663/S2 monitor has a 1280×800 resolution, 7" IPS panel, perfect combination for use and the ideal size to fit neatly in a camera bag.

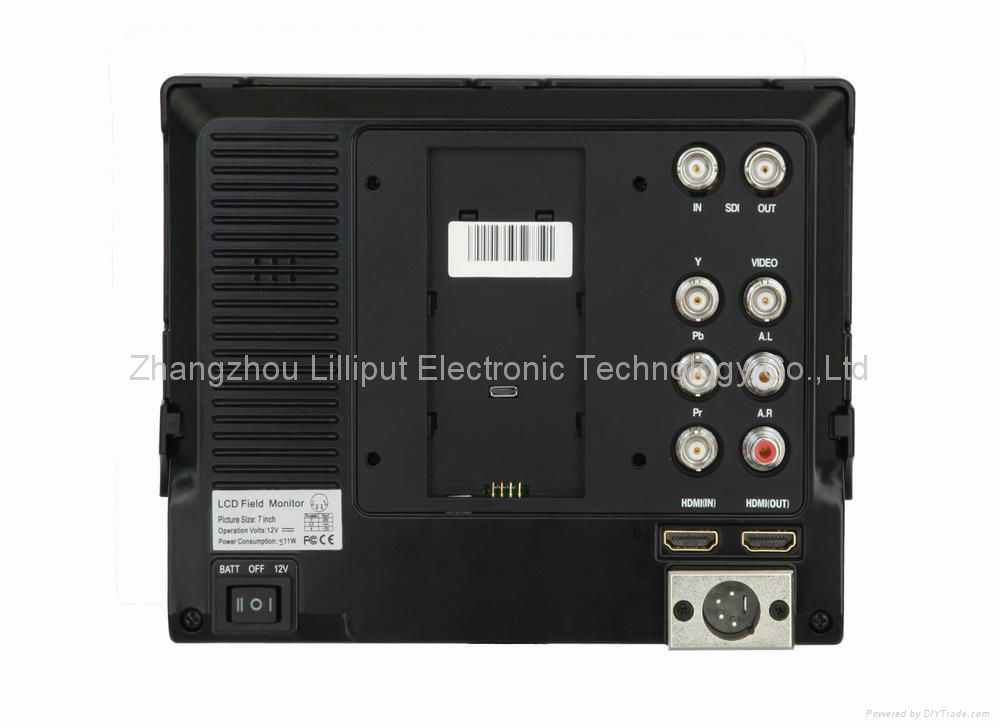

HDMI, component and composite

3G-SDI, HDMI, and component and composite through BNC connectors

No matter which camera or AV equipment our customers use with the 663/S2, there is a video input to suit all applications.

Field monitor for the pro video market

Optimised for Full HD Camcorder

Compact size and peaking functionality are the perfect complements to your Full HD Camcorder's features.

Screen protection

Foldable sunhood becomes screen protector

Customers frequently asked Lilliput how to prevent their monitor's LCD from getting scratched, especially in transit. Lilliput responded by designing 663's smart screen protector that folds out to become a sun hood. This solution provides protection for the LCD and saves space in the customers camera bag.

HDMI output

HDMI video output - no annoying splitters

663/S2 includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

High resolution LCD

High resolution

663/S2 uses the latest IPS LED-backlit display panels that feature higher physical resolutions. This provides higher levels of detail and image accuracy.

High contrast LCD

High contrast ratio

663/S2 provides even more innovations to pro-video customers with its super-high contrast LCD. The 800:1 contrast ratio produces colours that are vivid, rich - and importantly - accurate.

Configurable to suit your style

Since Lilliput introduced the complete range of HDMI monitors, we have had countless requests from our customers to make changes to improve our offering. Some features have been included as standard on 663/S2. Users can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs.

IP67 10 inch monitor

Wide viewing angles

Lilliput's monitor with the widest viewing angle has arrived! With a stunning 178 degrees viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing.

Parameter:

DISPLAY

Panel 7" IPS
Physical Resolution 1280×800, support up to 1920×1080
Aspect Ratio 16:9
Brightness 400cd/㎡
Contrast 800:1
Viewing Angle 178°/178°(H/V)

INPUT

3G-SDI 1
HDMI 1
YPbPr 3(BNC)
VIDEO 1
AUDIO 2(L/R)

OUTPUT

3G-SDI 1
HDMI 1

AUDIO

Speaker 1(built-in)
Ear Phone Slot 1

POWER

Current 900mA
Input Voltage DC 7-24V(XLR)
Battery Plate V-mount / Anton Bauer mount /
F970 / QM91D / DU21 / LP-E6
Power Consumption ≤11W

ENVIRONMENT

Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃

DIMENSION

Dimension(LWD) 191.5×152×31 / 141mm (with cover)
Weight

760g / 938g (with cover)/ 2160g (with suitcase)

Accessories:

Suitcase

Shoe Mount

Battery Plate

Mount plate bracket

Flexible folding sun shade

HDMI A/C cable

Power & TALLY cable

12V DC adapter

Manual

V-mount battery plate (optional)

Anton Mount Plate (optional)

Li-ion battery (optional)
